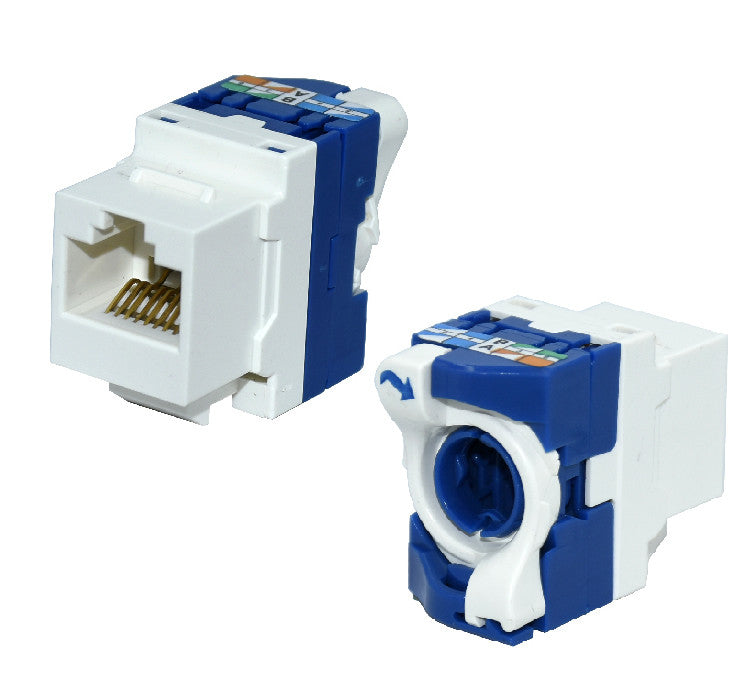

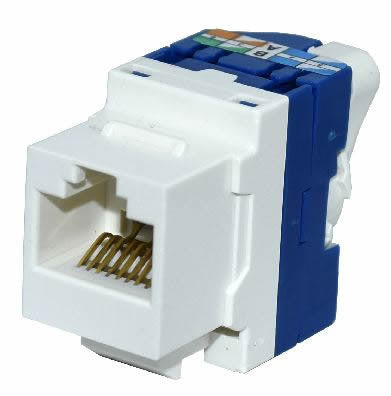

RJ45 Female (outdoor) to 110 Terminal Block (indoor) connector for installation in 110 standard panels. Compliant with Category 6 standards. Compatible with the AMP format. Features a self-crimping system, requiring no tools to secure and protect the connections.
It has color code markings to facilitate installation.
SPECS:
- CAT 6 KeyStone RJ45 connector, unshielded UTP
- Insulation displacement connector, cable lock with rotating button
- The connectors are color-coded according to TIA 568A/B
- Easy wired and tool-free installation
- Suitable for AWG 22-24 round cable, max. cable diameter: 7.5 mm
- Suitable for Power over Ethernet (PoE) according to IEEE 802.3af
- Material: Plastic
- Dimensions: Height: 16.40 mm
- Width: 14.60 mm
- Depth: 32.26 mm
- Color: White / Blue
