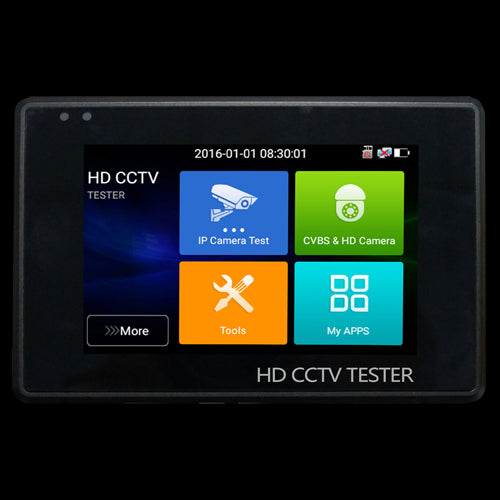

SAFIRE multifunctional wrist CCTV tester, a 5-in-1 tool for installers that allows verifying HDTVI, HDCVI, AHD, analog CVBS and IP cameras with resolutions up to 4K. It displays the image on its 4" LCD touchscreen and decodes signals up to 8 Mpx (HDTVI), 5 Mpx (AHD), 4 Mpx (HDCVI), 2 Mpx (CVBS), and 4K (IP). It includes DC 12 V and PoE power outputs to power the camera during testing, PTZ control via RS485, and a rechargeable lithium battery, all in a compact and lightweight wrist-worn format.
Key features:
- 5-in-1 tool: compatible with HDTVI, HDCVI, AHD, CVBS (analog), and IP cameras.
- Test resolution up to 4K; decodes up to 8 Mpx (HDTVI), 5 Mpx (AHD), 4 Mpx (HDCVI), 2 Mpx (CVBS), and 4K (IP).
- 4" (800x480) LCD touchscreen with brightness, contrast, and saturation adjustment.
-
DC 12 V and PoE power outputs to power the camera while testing.
- PTZ control and analysis with multiple protocols via RS485.
- WiFi connectivity and Gigabit RJ45 port (10/100/1000M).
- BNC (TVI/CVI/AHD/CVBS), RS485, RJ45 (UTC/SCAN), and audio inputs; audio output.
- Integrated tools: RJ45 cable information, TDR test, and hard drive capacity calculation.
- Rechargeable 7.4 V / 2400 mAh lithium battery.
- Wrist-worn format, compact and lightweight (320 g).
Specifications:
| Brand |
SAFIRE |
| Model |
SF-TESTER-ARM-5N1-4K |
| Type |
Multifunctional wrist CCTV tester (5 in 1) |
| Display |
4" TFT-LCD touchscreen, 800×480 |
| Formats |
HDTVI / HDCVI / AHD / CVBS (analog) / IP (4K) |
| Decoding resolution |
8 Mpx (HDTVI) / 5 Mpx (AHD) / 4 Mpx (HDCVI) / 2 Mpx (CVBS) / 4K (IP) |
| Video settings |
Brightness, contrast, and saturation |
| Inputs |
BNC (TVI/CVI/AHD/CVBS), RS485, RJ45 (UTC/SCAN), audio |
| Outputs |
DC 12 V and PoE power; audio output |
| PTZ |
Control and analysis (multiple protocols) via RS485 |
| Communication |
WiFi, RJ45 10/100/1000M |
| Tools |
RJ45 cable information, hard drive capacity calculation, RJ45 TDR test |
| Power supply |
7.4 V 2400 mAh lithium battery |
| Charger |
DC 12 V 3 A |
| Operating temp. |
-10 °C ~ +50 °C |
| Dimensions / Weight |
126 × 83 × 33 mm / 320 g |
Package contents:
- 1x SAFIRE multifunctional CCTV tester
- AC/DC adapter 12 V / 3 A
- Tester probes
- Cables and connectors for the tester
