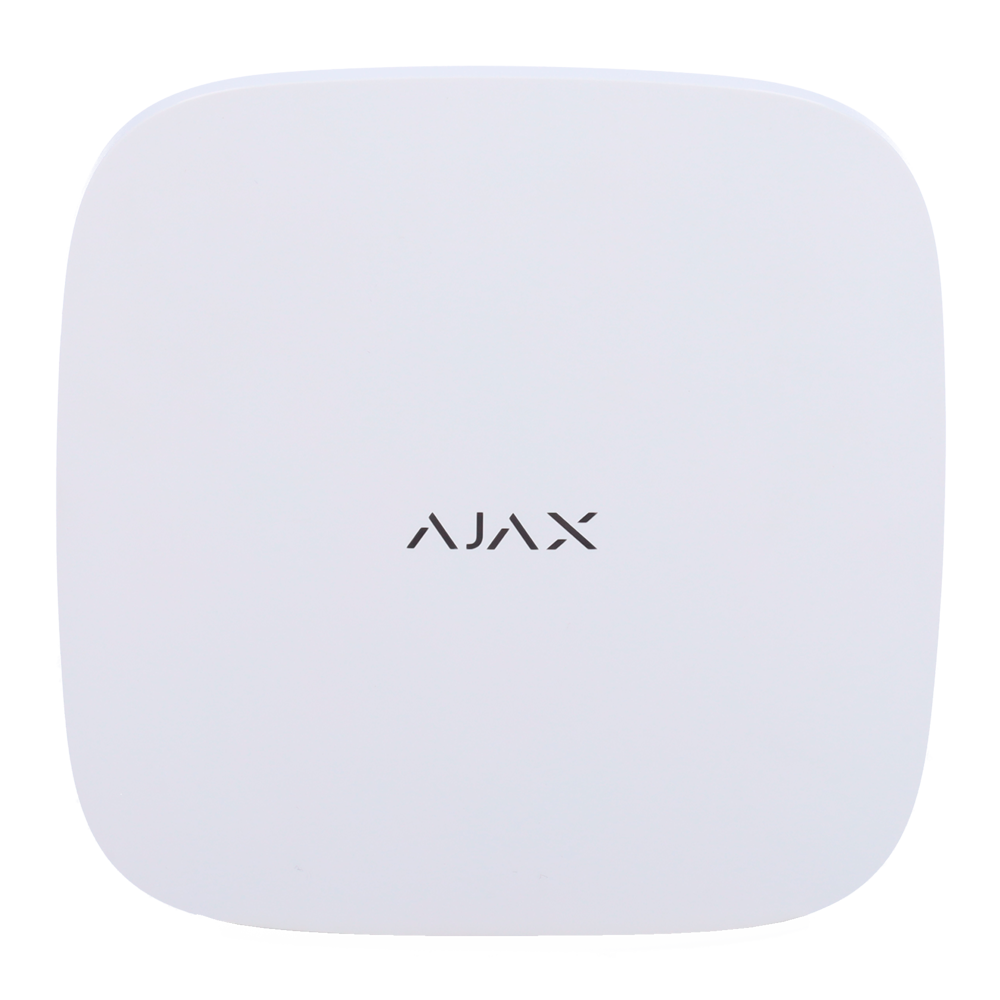

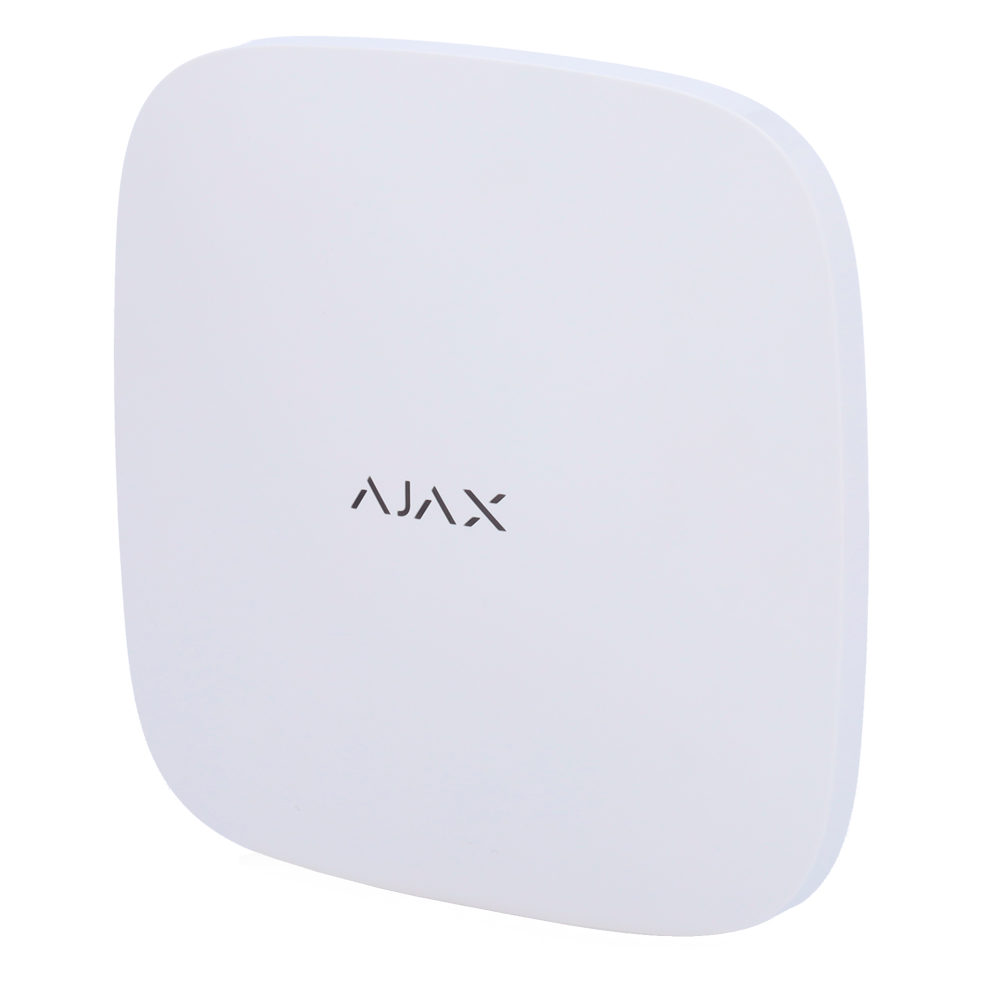

Ajax Hub (2G) Smart Alarm System, the brain of the Ajax wireless security system. It coordinates all connected devices using the two-way Jeweller protocol, with a range of up to 2000 m in open space, and instantly alerts both users and the Alarm Receiving Centre (ARC). It is fully controlled from the Ajax app (iOS and Android) and has a dual communication channel—Ethernet and GSM (2G)—to maintain connection even if one fails.
Key Features:
- Ajax system control panel: manages up to 100 devices and 50 users.
- Two-way Jeweller wireless protocol (868 MHz) with a range of up to 2000 m in open space.
- Dual communication channel: Ethernet + GSM (2G), with automatic failover.
- Frequency hopping and block encryption with dynamic key against interference and sabotage.
- Full control from the Ajax app for iOS and Android, locally and remotely.
- Communication with ARC via Contact ID and SIA protocols.
- Integration with up to 10 IP cameras or DVR channels.
- OS Malevich operating system, immune to viruses and cyberattacks, with OTA updates.
- Quick mounting with SmartBracket bracket and anti-tamper protection.
- Security Grade 2 (EN 50131) and backup battery for up to 15 hours.
Specifications:
| Security Grade |
Grade 2 (EN 50131) |
| RF Protocol |
Jeweller, 868 MHz (two-way) |
| Radio Range |
Up to 2000 m in open space |
| Internal Security |
Anti-opening tamper |
| Internal Siren |
Not available |
| Communication |
Ethernet + GSM (2G) |
| Maximum Devices |
100 (up to 10 sirens and 1 ReX repeater) |
| Video Integration |
Up to 10 IP cameras or DVR channels |
| Number of Users |
Up to 50 |
| Communication with ARC |
Contact ID / SIA |
| Firmware Update |
OTA (over-the-air) remotely — OS Malevich |
| Cover Material |
ABS plastic |
| Power Supply |
AC 110–240 V, 50/60 Hz |
| Backup Battery |
Li-ion 2 Ah, up to 15 hours |
| Operating Temp. |
-10 °C ~ +40 °C |
| Dimensions |
163 (H) × 163 (W) × 36 (D) mm |
| Colour |
White |
Package Contents:
- 1x Ajax Hub (2G)
- SmartBracket mounting panel
- Power cable
- Ethernet cable
- Installation kit (screws)
- Quick start guide
