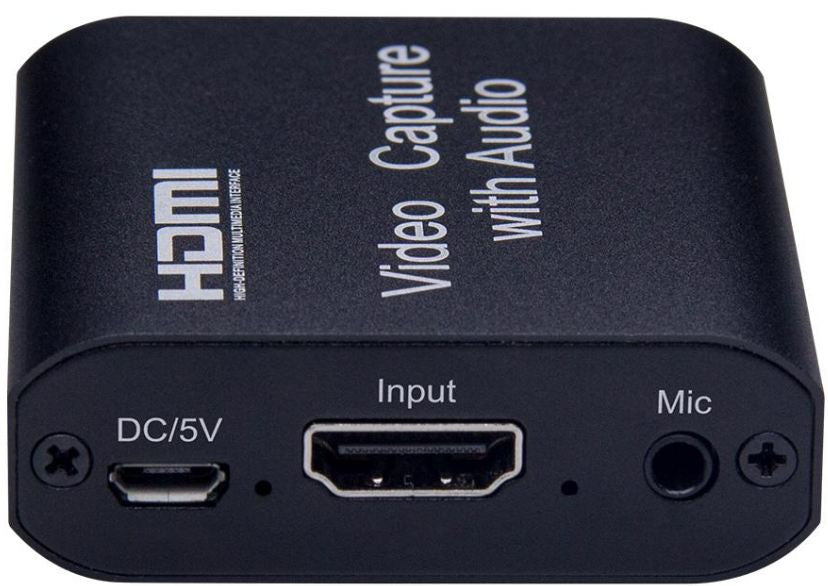

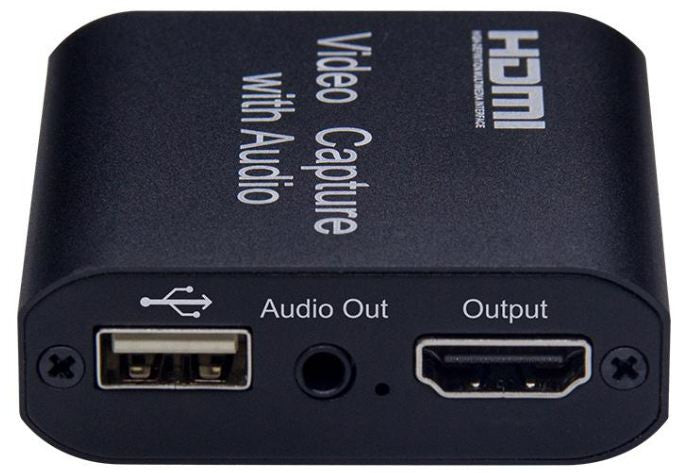

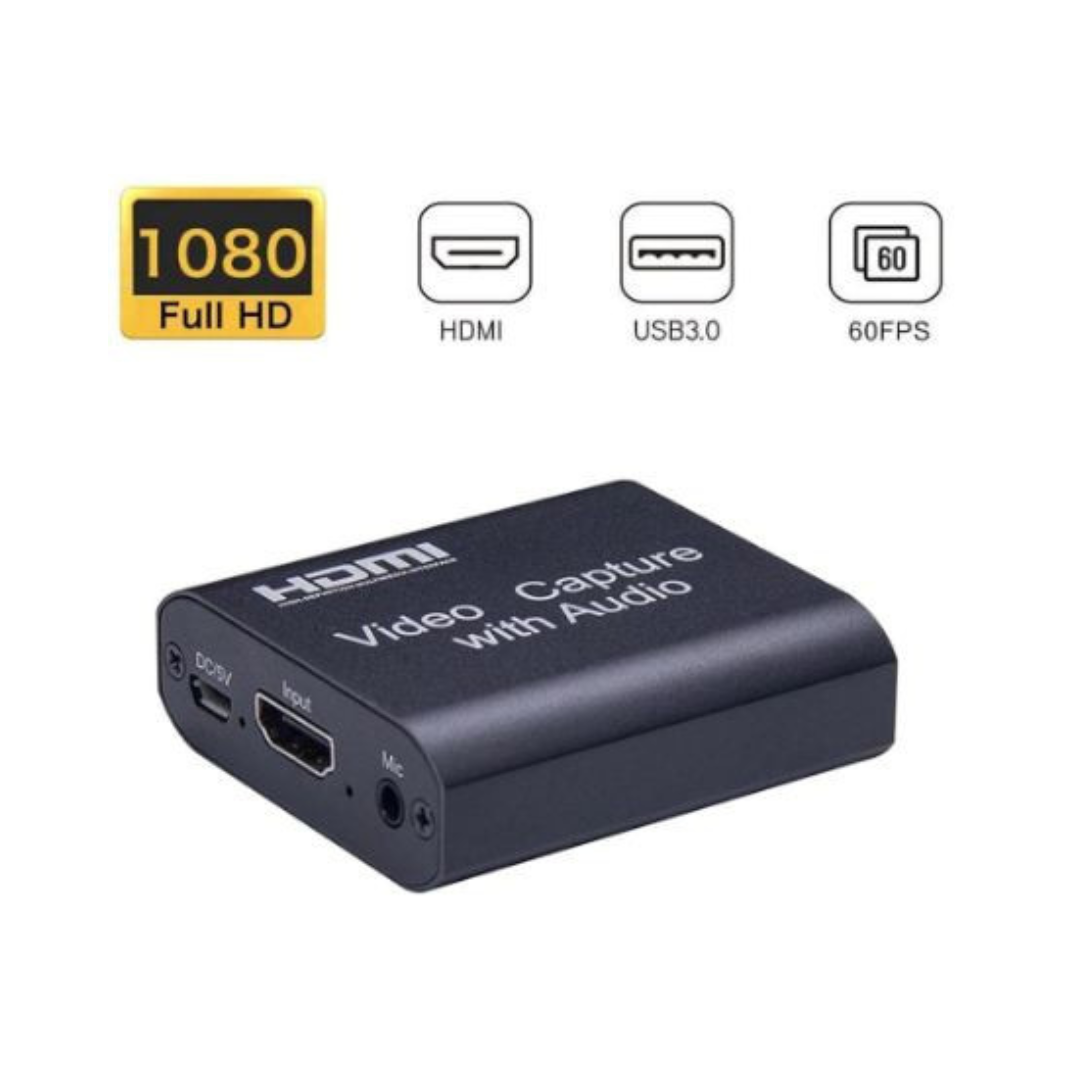

Capture HDMI video and HDMI audio, sending audio and video signals
to computers and smartphones for preview and storage.
Suitable for high-definition acquisition, teaching recording, etc.

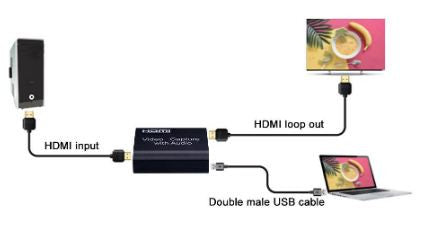

- Supports HDMI loop output.
- It supports microphone audio input and 3.5mm jack stereo output.
- It supports microphone audio and HDMI audio overlay capture.
- Supports input resolutions up to 4K.
- Maximum output resolution support 1080P.
- Supports standard HDMI AWG26 cable: input up to 15 meters (1080P and lower resolution).
- It supports most acquisition software, such as VLC, OBS, Amcap, etc.
- Support for Windows, Android, and MacOS.
- It complies with the USB Video and UVC standards.
- Compliant with the USB Audio UAC standard.
Specification:
- Type: Video recording card
- Material: Metal. Color: Black.
- Size (L*W*H): 59x56x19mm
- HDMI Resolution: Max. 4K
- Supported video format: 8/10/12 bit deep color
- Video output format: YUV, JPEG
- Supported audio format: L-PCM
- Maximum operating current: 0.7A / 5VDC
- Operating temperature range: -10°C ~ +55°C
- Weight 52g
Package Included:
-1pc x video recording card
-1pc x micro-USB cable
-1pc x USB extension (male to male)
-1pc x manual
