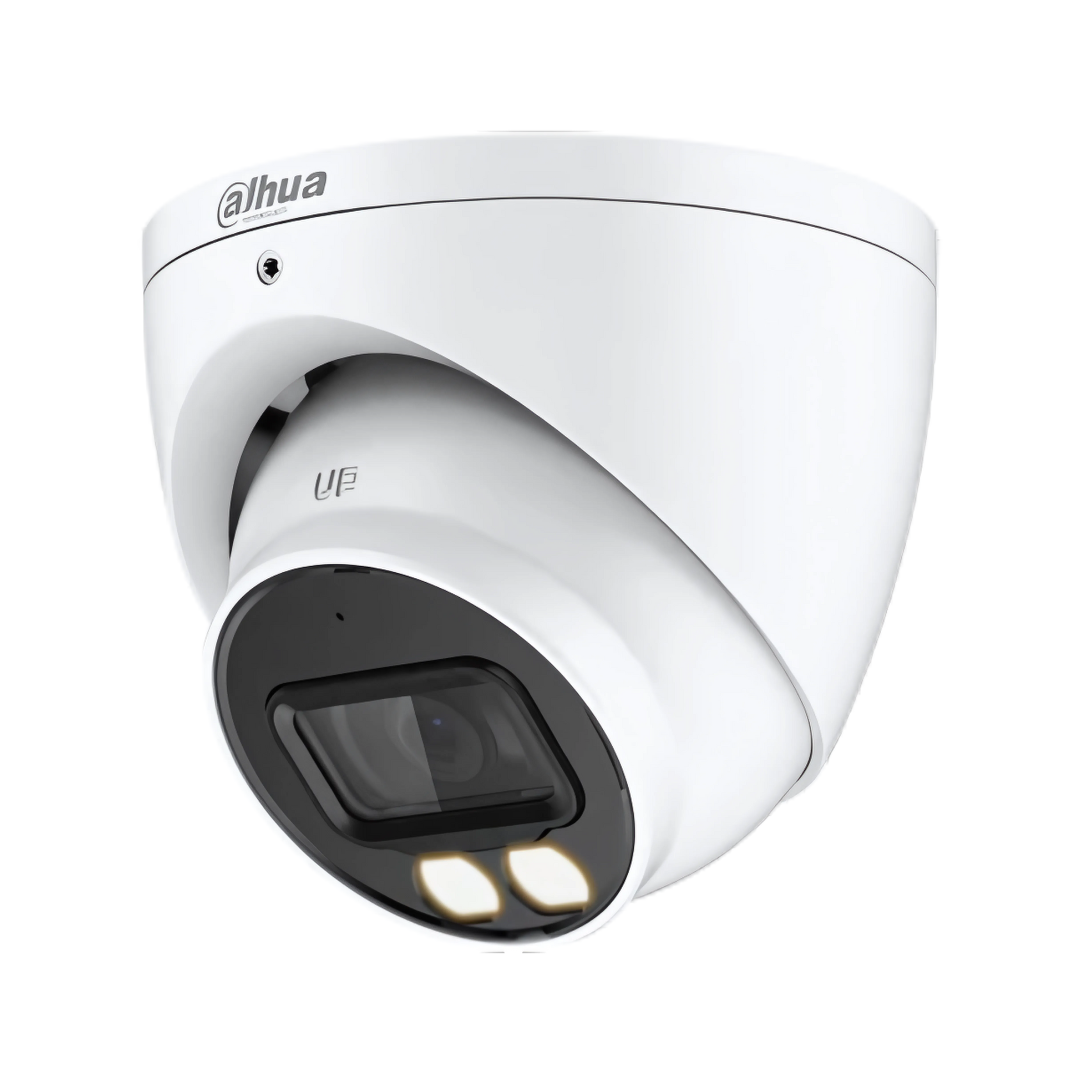

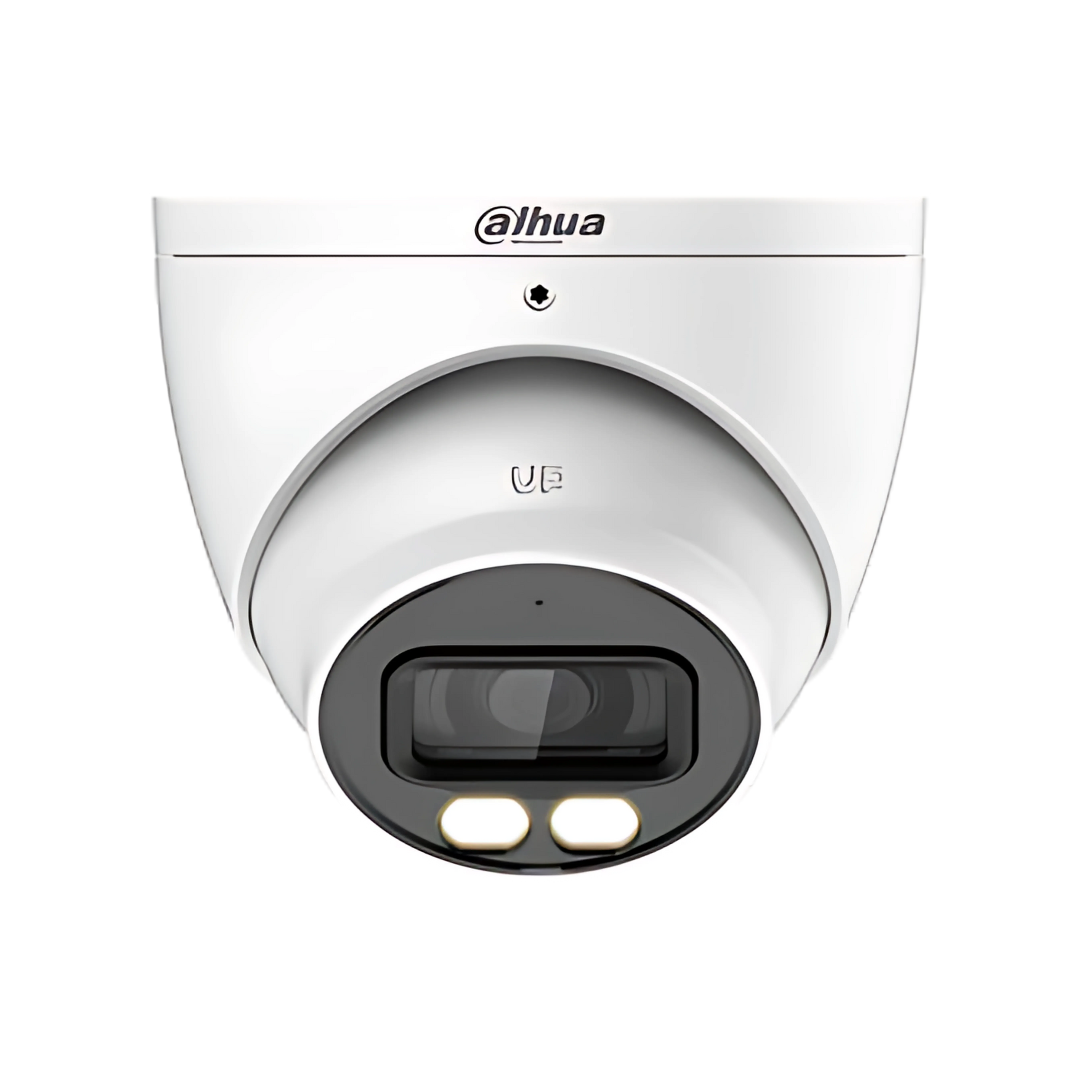

HYBRID TURRET CAMERA HDCVI 5MP FULL COLOR PAL INTELLIGENT DUAL LIGHT INTEGRATED 2.8MM MICROPHONE
Regular price
59,99 €
Unit price
/
Unavailable
DAHUA | SKU:
DH-HAC-HDW1509TP-IL-A-0280B-S2
HYBRID TURRET CAMERA HDCVI 5MP FULL COLOR PAL INTELLIGENT DUAL LIGHT INTEGRATED 2.8MM MICROPHONE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Estimated delivery 1 to 5 business days after order
Description
Description
Audio
| Built-in microphone | Yeah |
| Audio input channels | 1 |
| Signal-to-noise ratio (SNR) | 65 dB |
Ports and Interfaces
| BNC output ports | 1 |
Lens system
| Detection distance (angular) | 66 m |
| Observation distance (angular) | 26.4 m |
| Recognition distance (angular) | 13.2 m |
| Identification distance (angular) | 6.6 m |
| Detection distance (tele) | 78 m |
| Observation distance (tele) | 31.2 m |
| Recognition distance (tele) | 15.6 m |
| Identification distance (tele) | 7.8 m |
| Observation distance | 31.2 m |
| Recognition distance | 15.6 m |
| Identification distance | 7.8 m |
| Lens diameter (wide angle) | 2.8 mm |
| Lens diameter (telephoto lens) | 3.6 mm |
| Fixed focal length | 3.6 mm |
| Digital zoom | 4x |
| Number of lenses | 2 |
| Maximum opening | 1 |
| Zoom capability | Yeah |
| Focal length interval | 2.8 mm |
| Closest focusing distance | 2.2 m |
| Detection distance | 78 m |
Weight and dimensions
| Height | 93.6 mm |
| Weight | 490 g |
| Package width | 148 mm |
| Package depth | 139 mm |
| Package height | 137 mm |
| Diameter | 10.6 cm |
| Package weight | 660 g |
Energy control
| Feeding | DC |
| DC output voltage | 12 |
| Energy consumption (max) | 5.7 W |
| AC input voltage | 12 V |
Environmental conditions
| Operating temperature range | -40 - 60 °C |
| Storage temperature range | -40 - 60 °C |
| Operating relative humidity | 0 - 95% |
Connection
| Ethernet | No |
| Wifi | No |
| Bluetooth | No |
Video
| Video recording | Yeah |
| Maximum resolution | 2880 x 1620 Pixels |
| Supported video format | 1080p |
| Frame rate | 30 pps |
| Privacy mask | Yeah |
| Noise reduction | Yeah |
| Noise reduction technology | 3D Noise Reduction |
| Total megapixels | 5 MP |
| Supported graphic formats | 960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620 |
| Backlight compensation (BLC) | Yeah |
| Smart IR | Yeah |
| Gain control type | Automatic/Manual |
| High Beam Compensation (HLC) | Yeah |
| Analog signal | NTSC, PAL |
Storage media
| Built-in HDD | No |
Security
| Fire detection | Yeah |
| Mirror | Yeah |
Image sensor
| Sensor type | CMOS |
| Progressive scanning | Yeah |
Camera
| Lens viewing angle, horizontal | 111° |
| Lens viewing angle, vertical | 57° |
| Lens viewing angle, diagonal | 131° |
| Field of view (FOV) angle | 131° |
| Camera movement control | Yeah |
| Camera tilt control | Yeah |
| Angle of inclination | 0 - 78° |
| Panoramic range (pan) | 0 - 360° |
| Minimum lighting | 0.0001 lx |
| Rotation angle | 360° |
| White balance | AWC, Auto |
| Shutter speed | 1/3 s–1/100000 s |
| Camera shutter type | Electronic |
Design
| Product color | Black, White |
| Form factor | Turret |
| Mounting type | Ceiling |
| IP Code (International Protection) | IP67 |
| Housing material | Metal |
| IK Code | No |
Night vision
| Night vision | Yeah |
| Night vision distance | 40 m |
| LED type | GO |
| Number of lighting LEDs | 2 |
Performance
| Dynamic range | 120 dB |
| Integrated light | Yeah |
| Guy | CCTV security camera |
| Supported placement | Abroad |
| Connectivity technology | Wire |
| Day/Night Mode | Yeah |
| Certification | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
| Remote viewing | Yeah |
| Wide Dynamic Range (WDR) | Yeah |
