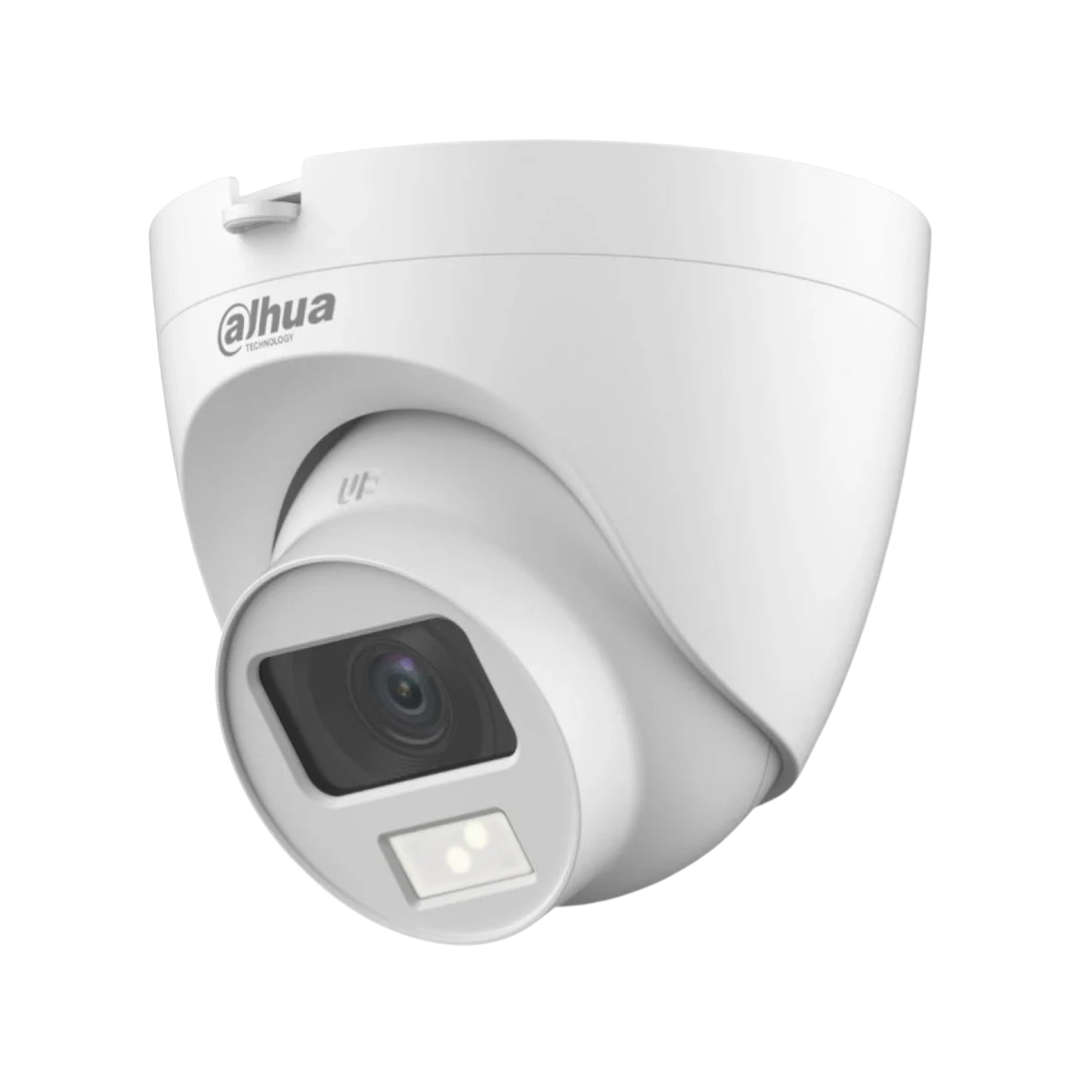

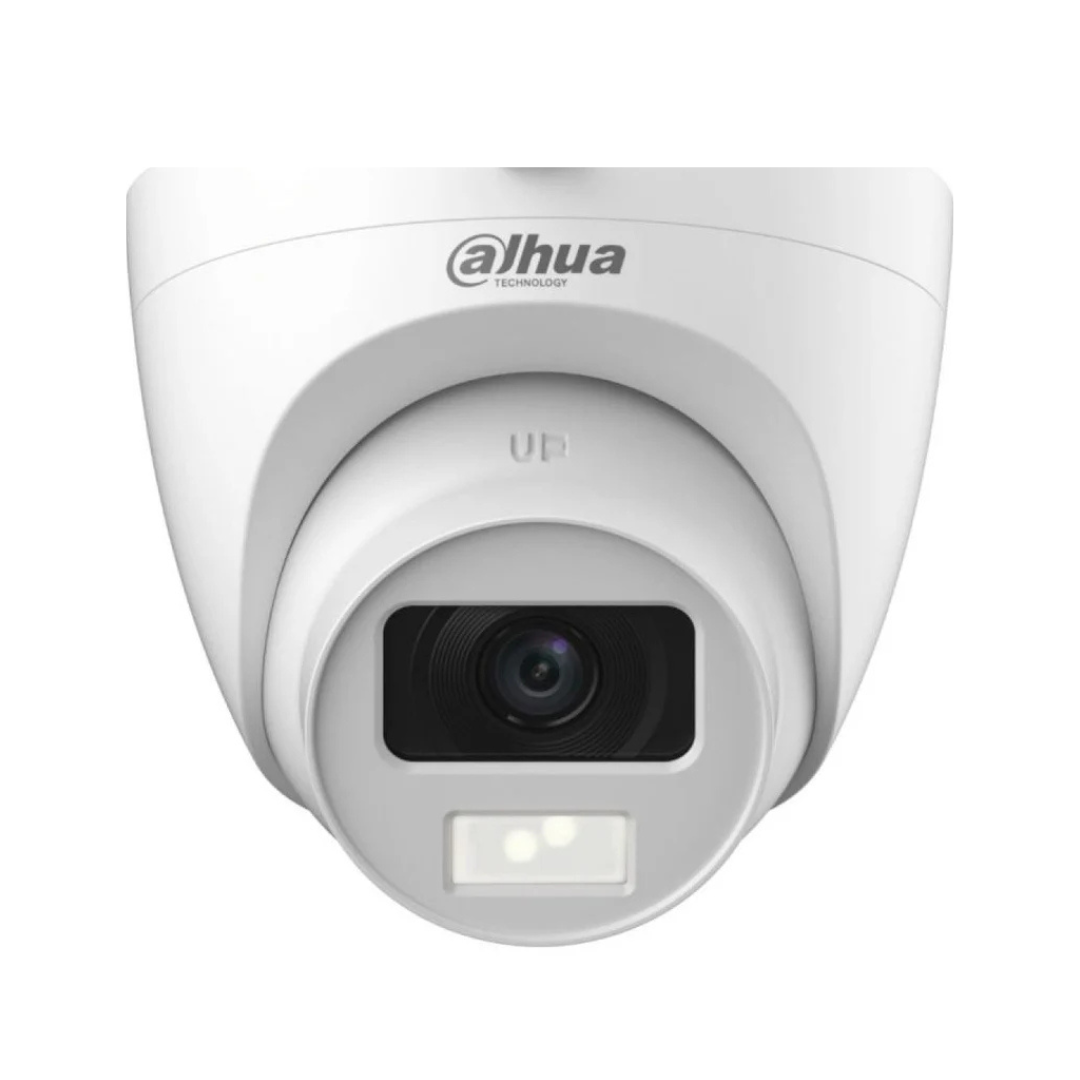

2MP Dual Light Smart HDCVI Dome Camera - BUILT-IN MICRO - 2.8MM

Characteristics

• Max. 30fps at 1080p.
• 3D NR.
• Intelligent dual light.
• 20m lighting distance.
• Super Adaptation.
• Built-in microphone.

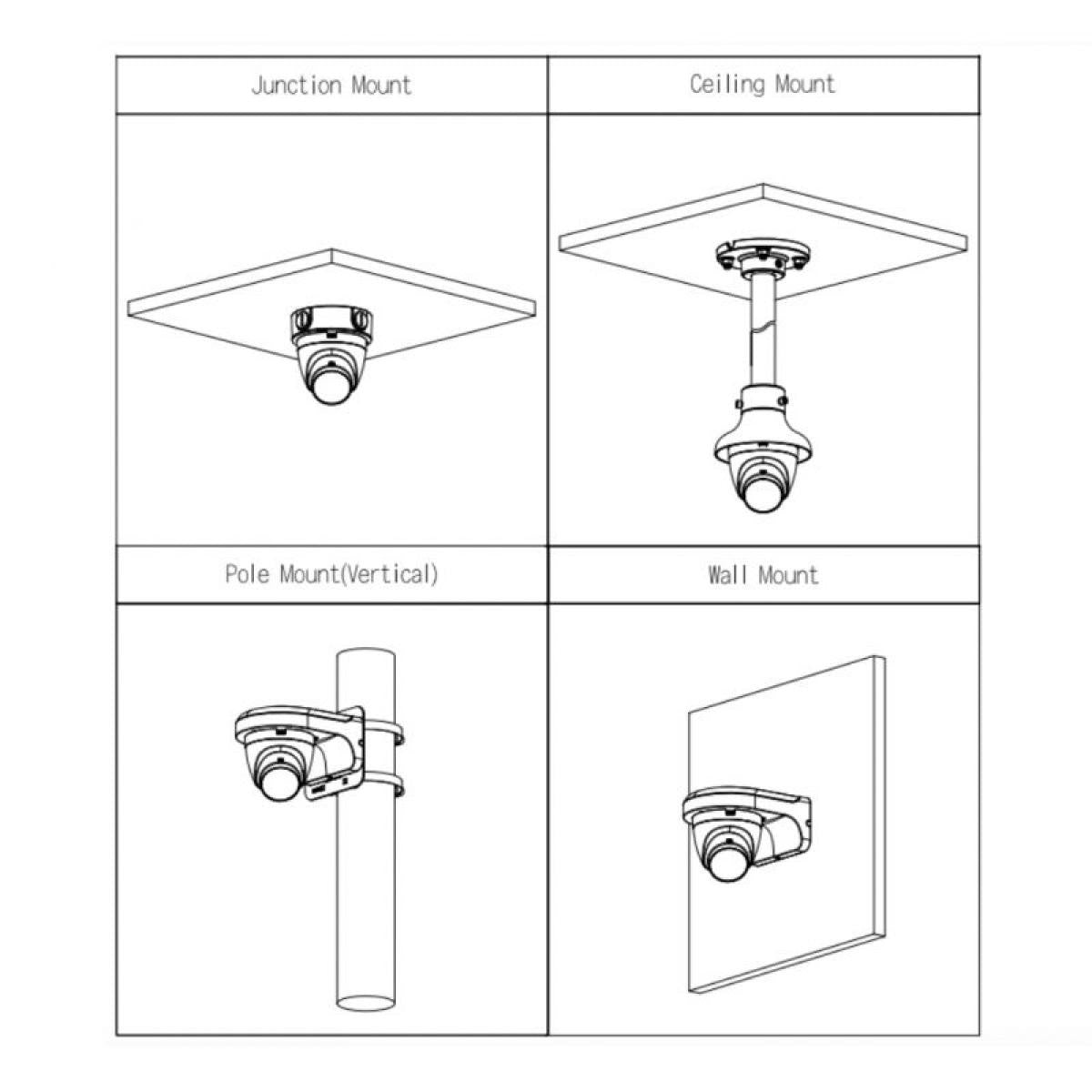

• Quick-install eyeball saves installation time.
• 3.6mm fixed lens (2.8mm optional).
• CVI/CVBS/AHD/TVI switchable.
• IP67, 12 VDC.

Camera

• 2 Megapixel CMOS Image Sensor Max.
• Resolution 1920 (H) x 1080 (V)

Lens

• Lens Type: Fixed Focal
• Autofocus: No
• Focal length 2.8mm; 3.6mm

Video frame rate

CVI:

• PAL: 1080p@25fps;
• NTSC: 1080p at 30 fps;

AHD:

• PAL: 1080p@25fps;
• NTSC: 1080p at 30 fps;

TVI:

• PAL: 1080p@25fps;
• NTSC: 1080p at 30 fps;

CVBS:

• PAL: 960H;
• NTSC: 960H

Video

• Resolution 1080p (1920 x 1080); 960H (960 x 576/960 x 480)
• Day/Night Auto (ICR)/Color/B/W
• BLC: BLC; CHL; DWDR WDR DWDR
• Smart IR&WL lighting mode; WL mode; Infrared mode

Certification

• CE-LVD: EN 62368-1;
• CE-EMC: EN 55032;
• EN 55035; FCC: 47 CFR FCC Part 15, Subpart B

Specs

• Power supply 12 VDC ± 30%
• Power consumption Max. 2.6W (12VDC, IR on)
• Ambient Operating Temperature -40 ºC to +60 ºC (-40 ºF to +140 ºF)
• Operating humidity 95% (RH), non-condensing
• Storage temperature -40 ºC to +60 ºC (-40 ºF to +140 ºF)
• Storage humidity 95% (RH), non-condensing
• IP67 protection

* Parameters can only be applied to the 1200-S6-IL series.

* In order to use the Smart Dual Light HDCVI camera, the XVR firmware must be updated to V4.001.0000004.1.R.220323 or later.
