Characteristics
- Consisting of a 1/2.7″ 2.1 Megapixel sensor (model PS5220) and DSP (model V30), offering a resolution of 1080p at 25 FPS. 2.8 ~ 12 mm varifocal optics with a diagonal field of view of 94º at 25º. 3 infrared Array LEDs that activate automatically, providing a clear image at 0 Lux (total darkness) at a maximum distance of 40 m.
- It has an automatic IR CUT filter that allows you to obtain an image with clear and real colors during the day.
Thanks to its DSP, it has an OSD menu in HD formats, accessible remotely from the recorder via the coaxial cable, which allows you to configure the camera and adjust its most important parameters:
- AE Shutter, automatic exposure control to optimize the light input received
- 2D-NR, digital noise reduction system without loss of focus
- AWB, automatic white balance adjustment for true-to-life colors
Video connection via BNC in high definition HDTVI / HDCVI / AHD / CVBS formats, switchable via DIP combination switch.
- Housing made of aluminium, water-resistant according to IP66 protocol, can be used both indoors and outdoors. It has a sphere with three axes of rotation (3AXIS) that allow easy and precise adjustment of the viewing angle, with installation on ceiling or wall. It includes a screw that joins the base with the structure of the camera, to facilitate its installation.
Specs
- Weight. 500 g.
- Dimensions. 95 (D) x 120 (Ø) mm.
- Operating temp. -10º C to +60º C.
- Protection grade: Waterproof IP66.
- Power supply: DC 12 V / 450 mA.
- Optics. Varifocal 2.8 to 13mm (D: 94º to 25º).
- Configurable OSD functions. DWDR, 2D-NR, AE, AWB, AGC.
- Basic functions. OSD menu (remote), Day/Night with IR-CUT (ICR).
- Minimum illumination. 0 Lux / 3 IR Array LEDs (40 m).

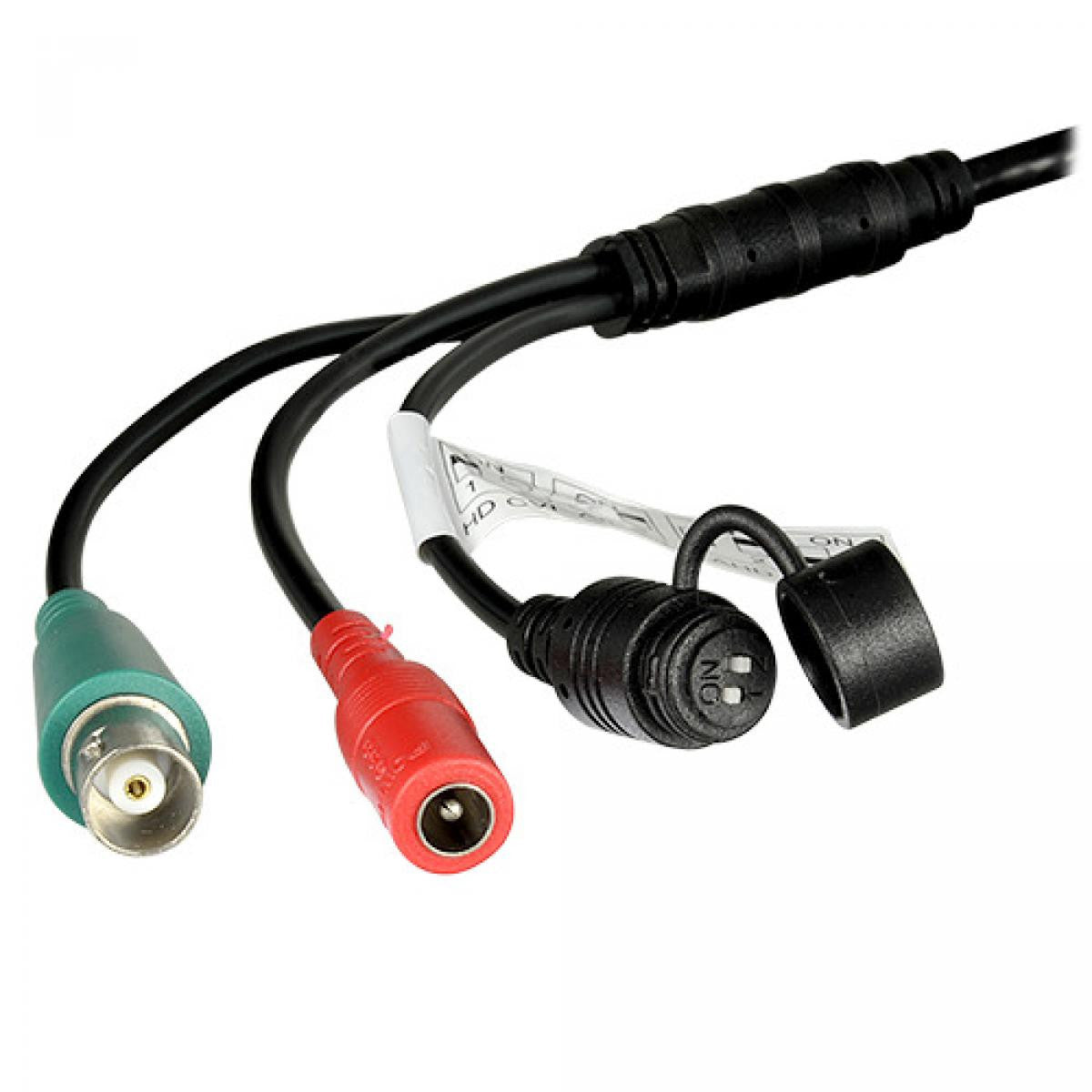

- Video output. 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS.
- Resolution. HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL.
- DSP. V30.
- Image sensor. 1/2.7 2.1 Megapixel (model PS5220).
Box contents
- 4 in 1 Dome Camera
- 4 dowels and 4 screws for mounting
- Allen key
- Instructions for use
- Easy installation template
