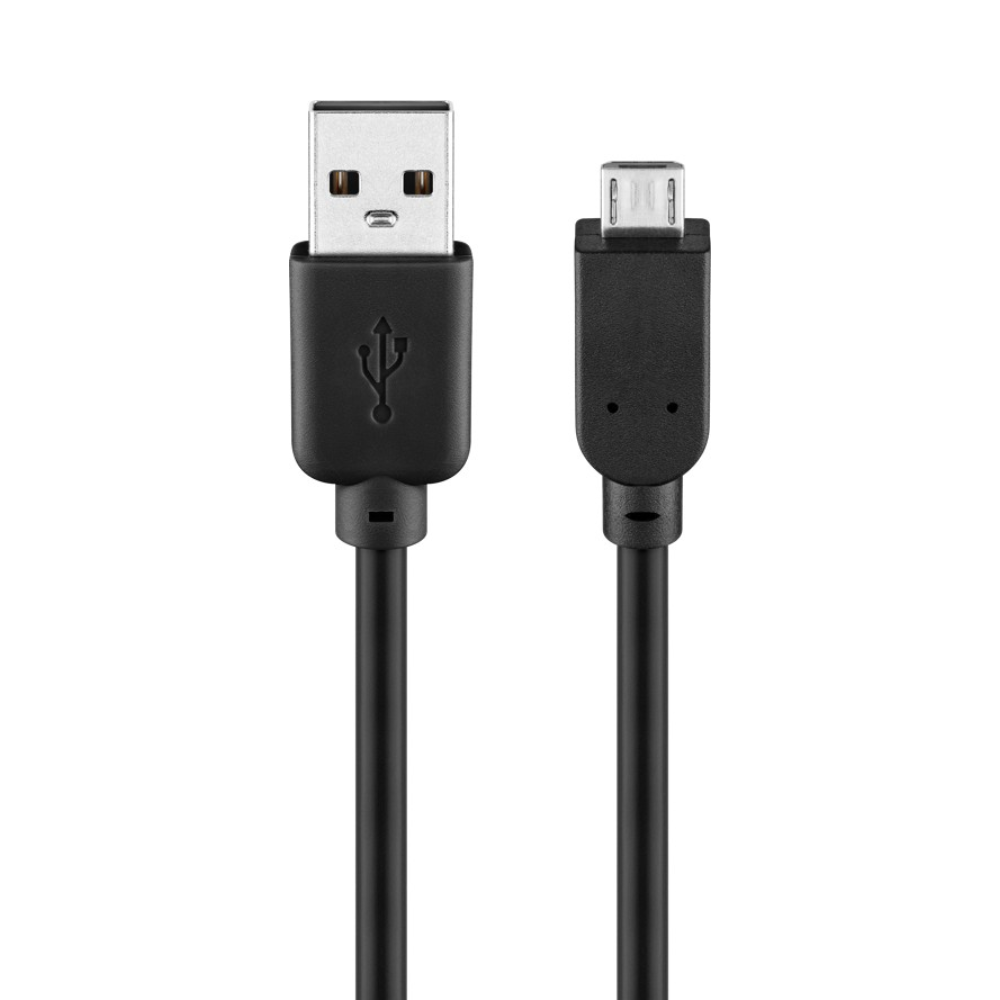

Cable from USB type A male to Micro USB B male, the connector still fitted to controllers, bluetooth speakers, card readers, torches, action cameras and a good part of the peripherals from a few years back.
It works both for syncing and for charging, with a USB 2.0 signalling speed of up to 480 Mbps. The conductor is copper with nickel plating on the contacts and a PVC jacket in black.
The wire gauge is AWG 32/28, a construction meant for data and for normal charging. For high-current charging over long cables a larger cross-section is advisable, because the more length and the more amps, the more voltage drop.
Key features
- USB type A male to Micro USB B male connector
- USB 2.0, up to 480 Mbps
- Valid for syncing and for charging
- Copper conductor with nickel-plated contacts
- PVC jacket in black
- Eleven lengths, from 0.15 to 5 m
Specifications
| Connection A |
USB 2.0 type A male, straight |
| Connection B |
Micro USB B male, straight |
| Standard |
USB 2.0 (High-Speed) |
| Maximum speed |
480 Mbps |
| Conductor material |
Copper |
| Plating |
Nickel |
| Gauge |
AWG 32 / 28 |
| Diameter |
4.5 × 1.6 mm |
| Outer material |
PVC |
| Colour |
Black |
| Packaging |
Polypropylene bag |
| Available lengths |
0.15 · 0.3 · 0.5 · 0.6 · 1 · 1.8 · 2 · 3 · 4 · 4.5 · 5 m |
