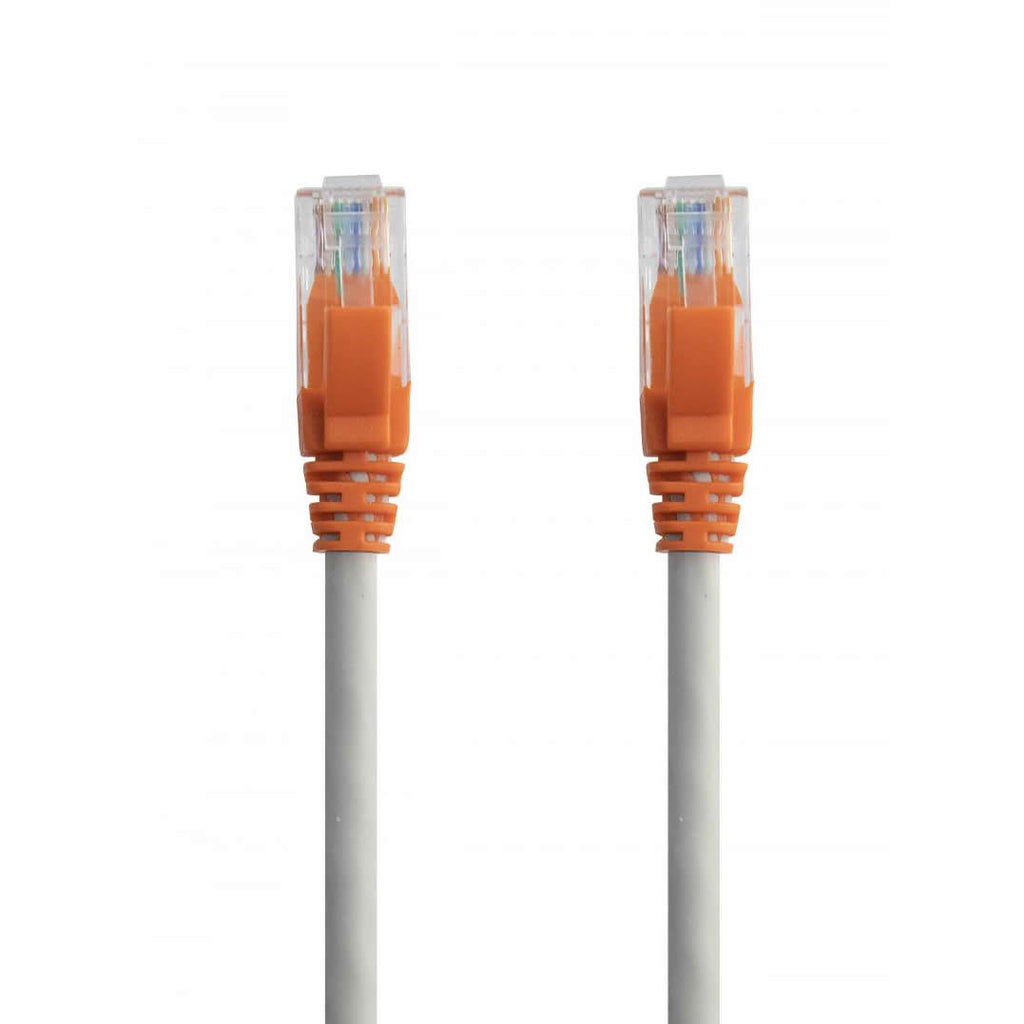

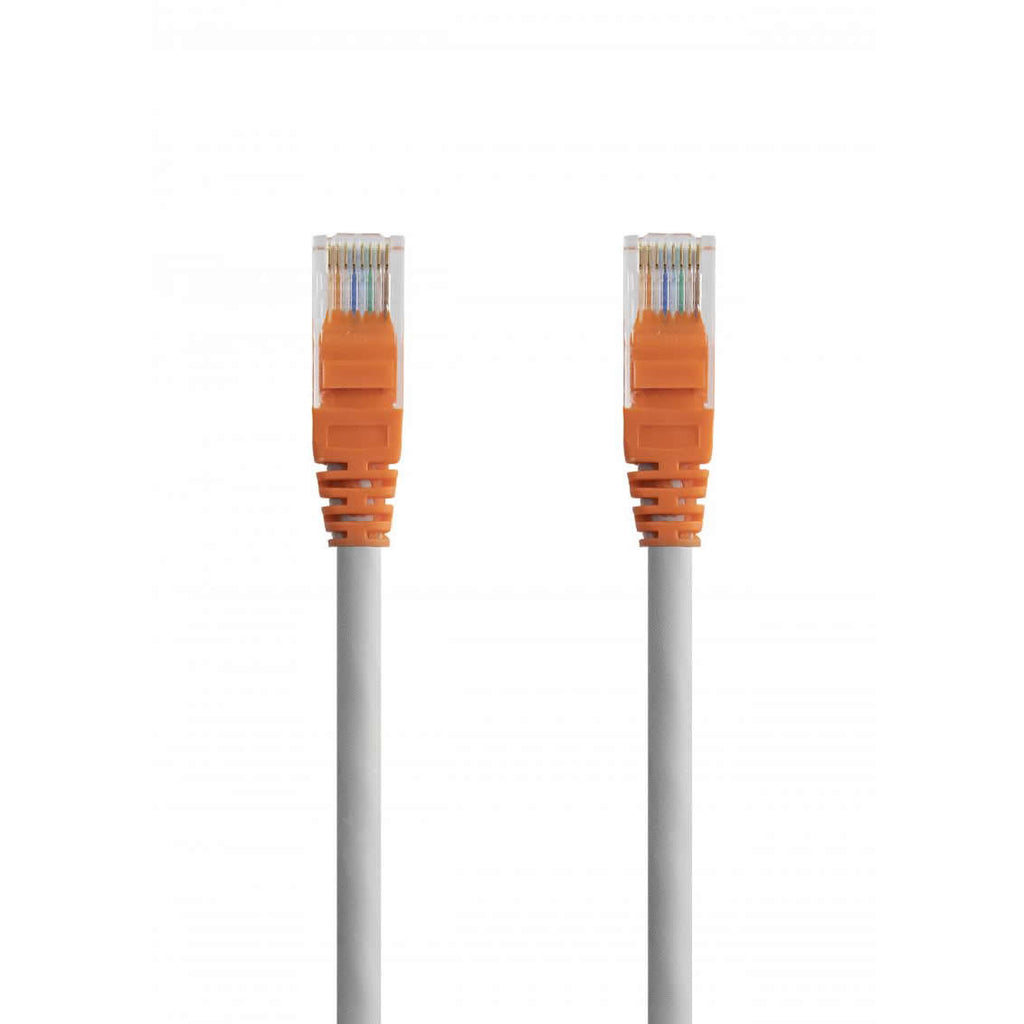

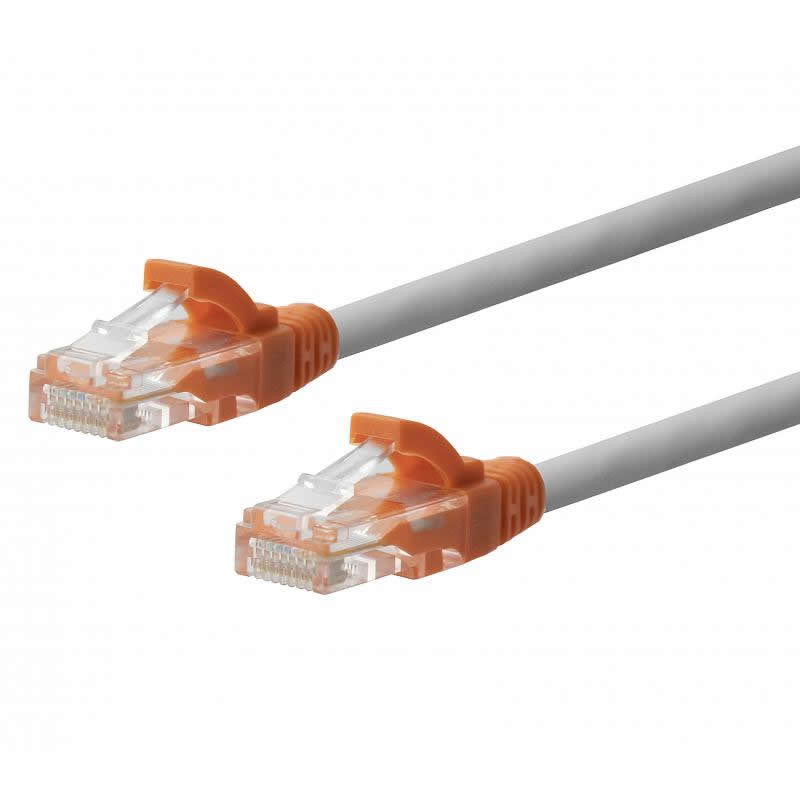

Cat6 U/UTP patch cable with male RJ45 connectors at both ends, for connecting the router, switch, computer, console or patch panel. Supports Gigabit Ethernet, 10/100/1000 Mbit/s.
The jacket is LSZH, halogen-free and low smoke: if it burns, it gives off less smoke and no halogenated gas, which is what is required in offices, schools and other public spaces.
The conductor is pure copper, not copper-clad aluminium, stranded AWG 26/7 so the cable is flexible. The contacts are plated with 3-micron gold, the clip has a protector so it does not snap off and the length is printed on the cable.
Sold in 15 lengths, from 0.25 to 50 m, all in grey.
Key features
- Cat6 U/UTP for Gigabit Ethernet (10/100/1000 Mbit/s)
- LSZH jacket, halogen-free and low smoke
- Pure copper conductor, stranded AWG 26/7
- 3-micron gold-plated contacts
- Clip protector and printed length
- EIA/TIA 568B wiring
- From 0.25 to 50 m, grey colour
Specifications
| Category |
Cat6 |
| Shielding |
U/UTP (unshielded) |
| Connectors |
Male RJ45 (8P8C) at both ends |
| Conductor |
Copper, stranded AWG 26/7 |
| Contacts |
3-micron gold plating |
| Jacket |
LSZH (halogen-free, low smoke) |
| Wiring |
EIA/TIA 568B |
| Speed |
10/100/1000 Mbit/s |
| Other |
Clip protector and printed length |
| Colour |
Grey |
| Lengths |
0.25 m · 0.5 m · 1 m · 1.5 m · 2 m · 3 m · 5 m · 7 m · 10 m · 15 m · 20 m · 25 m · 30 m · 40 m · 50 m |
