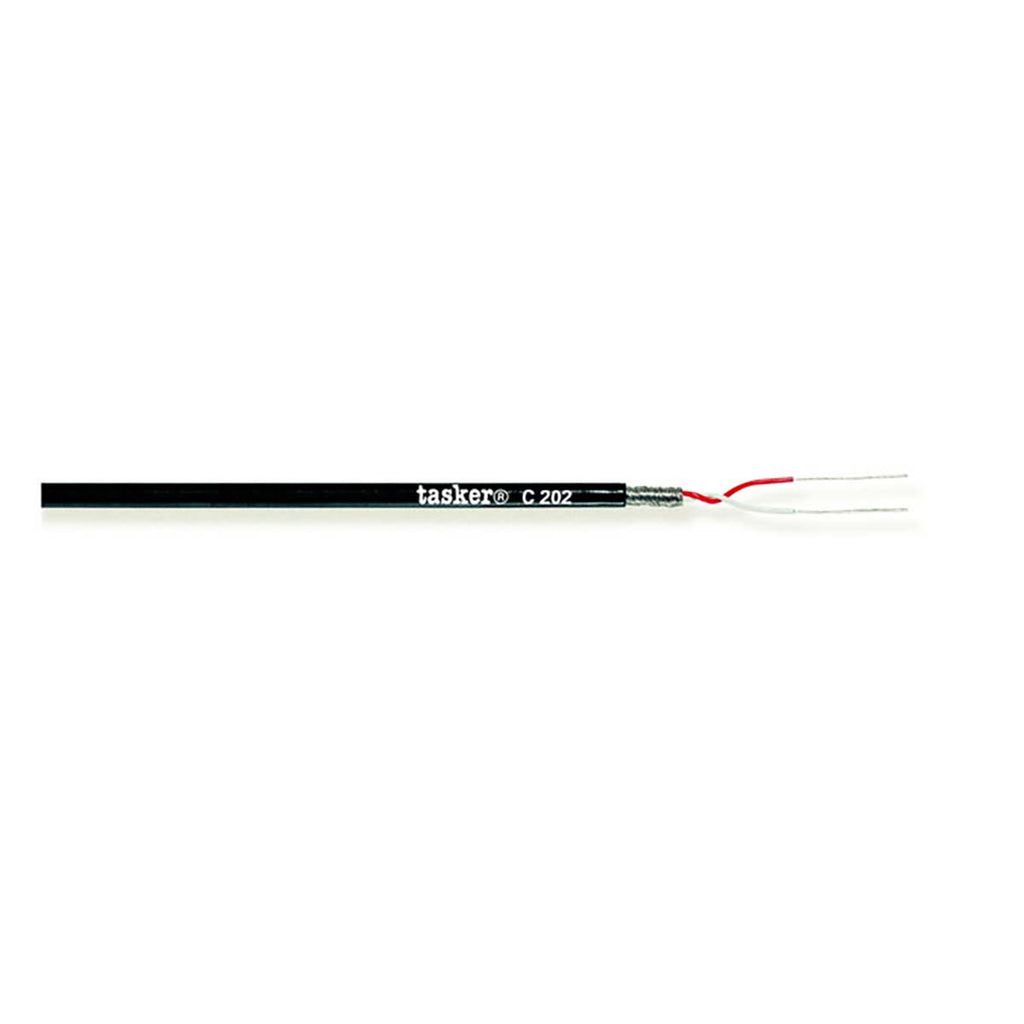

The Tasker C202 is a balanced microphone cable in mini format, very thin, with two 0.08 mm² conductors and an outer diameter of just 3 mm. Its extra-flexible jacket makes it suitable for the internal wiring of miniaturised audio equipment, lapel microphones, headphones and pre-assembled cables where the available space is very limited.
Main features
- O.F.C. tinned copper conductors, with a 12 x 0.10 mm stranding.
- O.F.C. tinned copper spiral shielding with 100 % coverage.
- Outer jacket of soft black PVC.
- PVC-insulated conductors, one red and one white.
- Suitable for fixed or limited mobile installation, indoors and for limited outdoor use.
- Supplied on a 100 m reel.
Specifications
| Model |
Tasker C202 |
| Cross-section |
2 x 0.08 mm² |
| Outer diameter |
3 mm |
| Conductor material |
O.F.C. tinned copper |
| Shielding |
Tinned copper spiral, 100 % coverage |
| Jacket material |
PVC |
| Colour |
Black |
| Conductor resistance |
203 Ω/km |
| Conductor/conductor capacitance |
170 pF/m |
| Conductor/shield capacitance |
310 pF/m |
| Maximum rated voltage |
49 V |
| Operating temperature |
-15 to +70 °C |
| Length |
100 m |
| Reference |
TASR-C202 |
