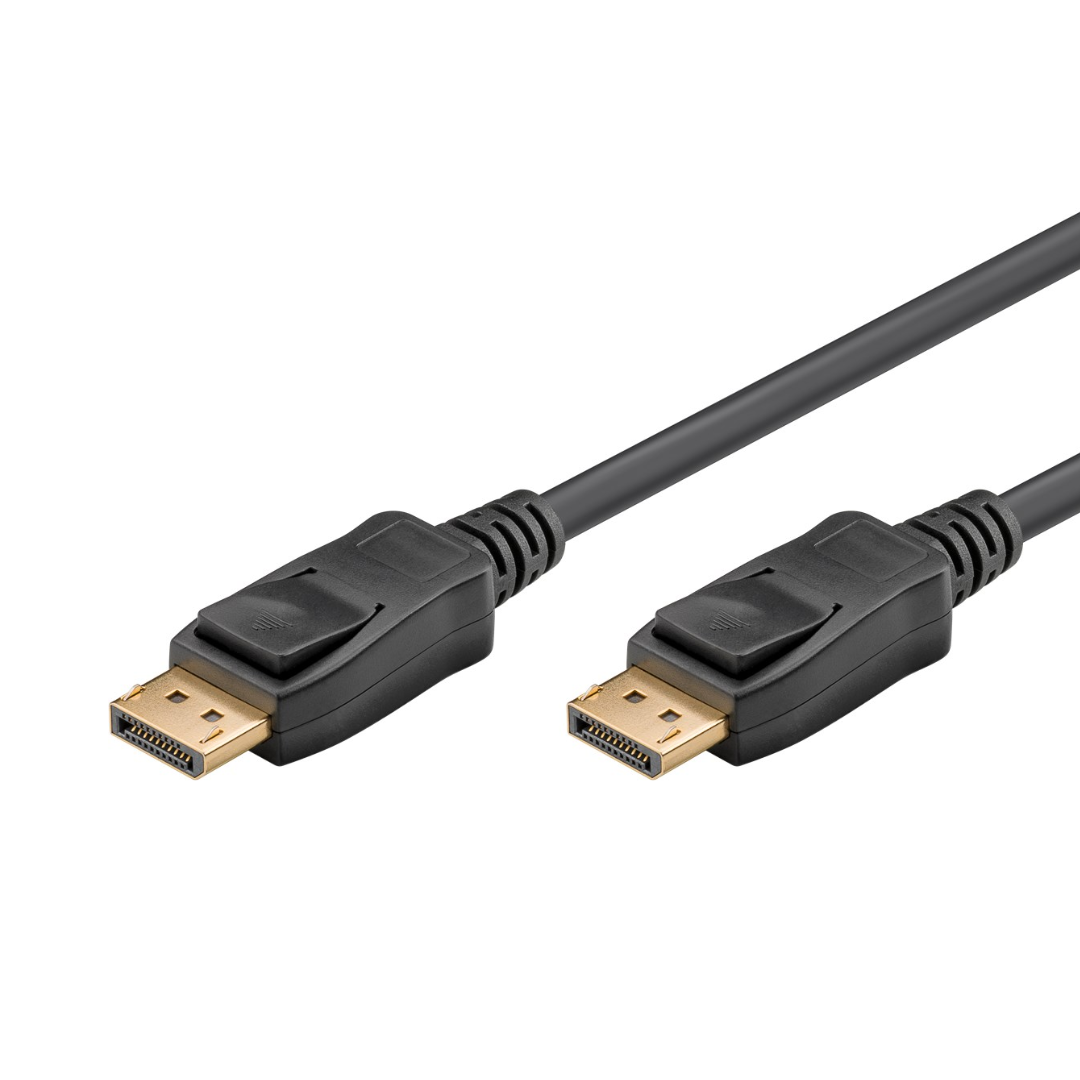

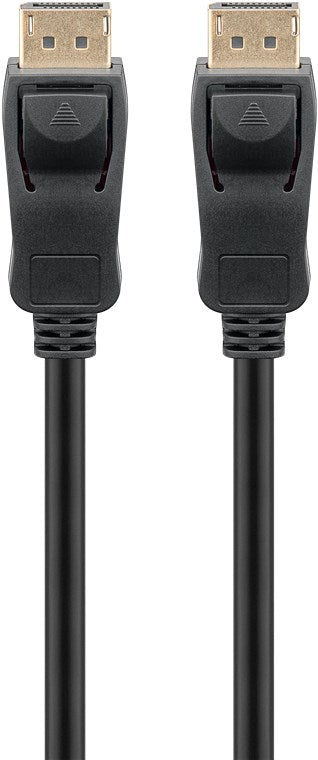

DisplayPort Cable Version 2.0 - Various lengths

Characteristics

• The DisplayPort cable (DisplayPort to DisplayPort) transmits high-resolution video signals and HD audio signals, for example, from a computer to a monitor or projector.

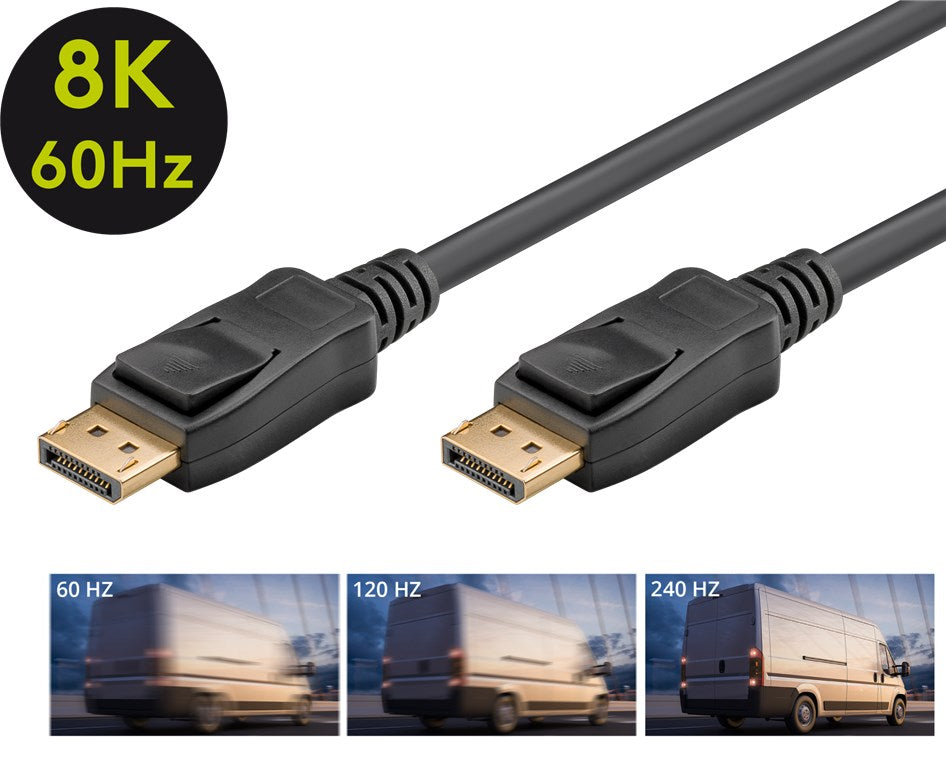

• It supports high-quality resolutions up to 8K (60 Hz) and delivers crisp images.
• Smooth images (without vibrations) thanks to compatibility with high refresh rates of up to 240 Hz, especially for gaming (depending on the graphics card and monitor)
• Backward compatible with 4K Ultra HD 2160p (120 Hz), gold-plated contacts and double shielding ensure improved signal transmission.

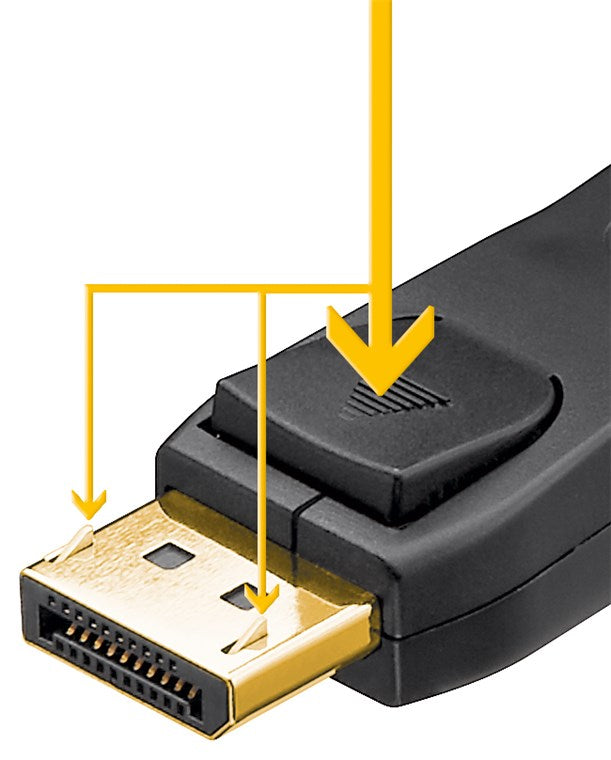

• The connector lock ensures a secure fit and optimal signal transmission. It can also be easily unlocked using the button.
• To prevent damage from a short circuit, pin 20 is not connected (no power supply).

Specs

• Connector A: Male DisplayPort
• Connector B: Male DisplayPort
• Color: Black
• DisplayPort version: 2.0
• Connector size: 47x20x12mm
• Inner conductor material: CU (copper)
• AWG: 28
• Number of armor platings: 2
• Cable length 2 meters
• Cable sheath diameter (approx.): 7.3mm
• Protection against twisting: Both sides
• Max. transmission speed: 40 Gbit/s
• Max. resolution
  • 8K Ultra HD 4320p (60 Hz)
  • 4K Ultra HD 2160p (120 Hz)
  • Full HD 1080p (240 Hz)
• Other supported standards: HDCP 2.2, HDR (High Dynamic Range)
• Supported color spaces: True Color (24 bits), Deep Color (30 bits)
