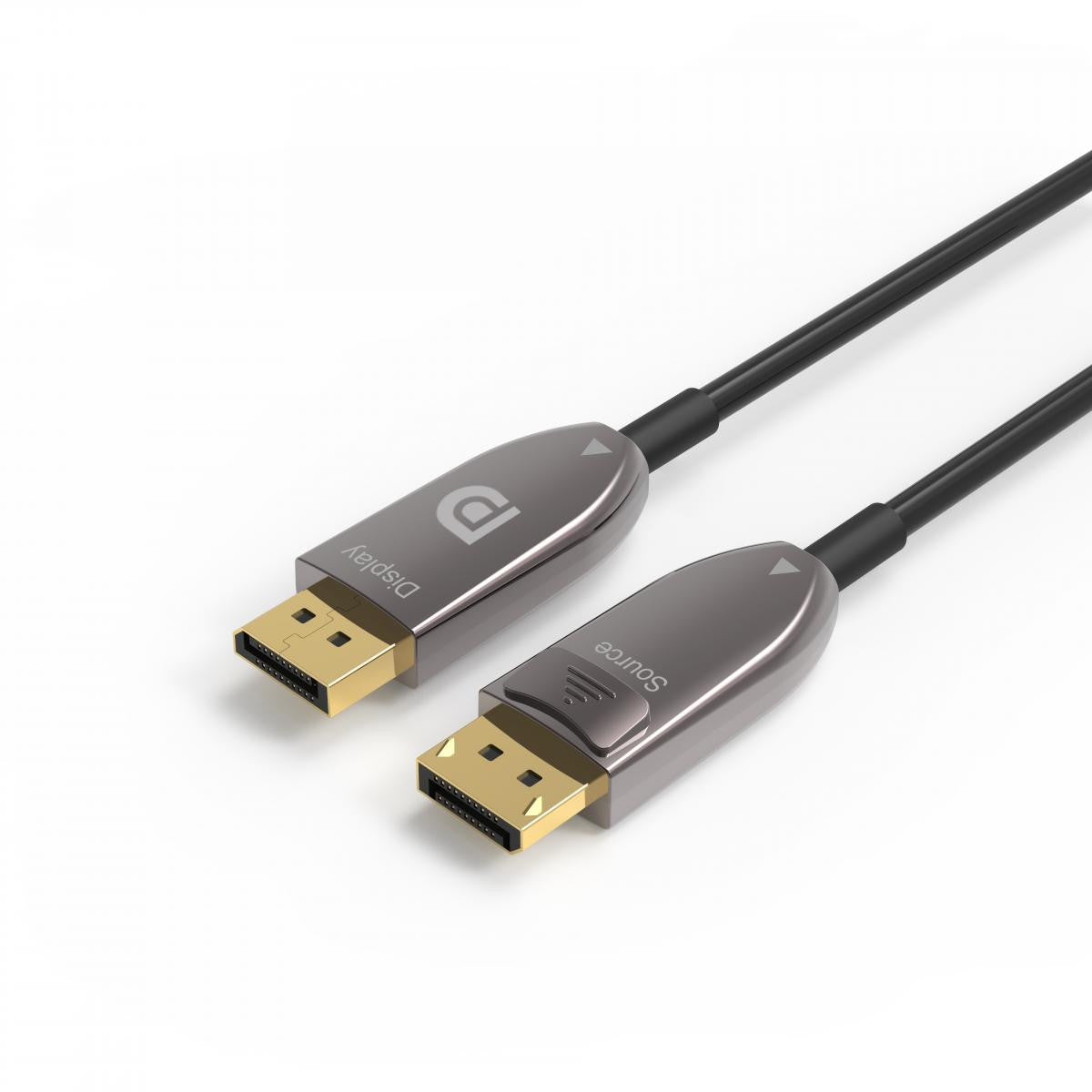

The fiber optic DisplayPort 1.4 cable (AOC) is designed for long runs with maximum image quality, supporting resolutions up to 8K@60Hz and 4K@144Hz. Being fiber optic, it is unidirectional: the "Source" end connects to the video source (e.g., a computer) and the "Display" end to the monitor or projector.
Advantages:
- Resolution up to 8K@60Hz and 4K@144Hz with 32.4 Gbps bandwidth.
- Fiber optic construction, ideal for long distances without signal loss.
- Reduced section of 5.2 mm, easy to run through conduits and ducts.
- Compatible with HDCP 2.2, HDR10, EDID, and DDC. Plug and play, no external power required.
Technical specifications:
- Connector A: DisplayPort male (Source)
- Connector B: DisplayPort male (Display)
- Version: DisplayPort 1.4
- Bandwidth: 32.4 Gbps
- Maximum resolution: 8K@60Hz / 4K@144Hz
- Internal cables: 4-core fiber + 7-core tinned copper
- Connector housing: zinc
- Outer diameter: 5.2 mm
- Compatibility: HDCP 2.2, HDR10, EDID, DDC
- Operating temperature: -40 °C to 70 °C
- Direction: unidirectional
- Color: black
