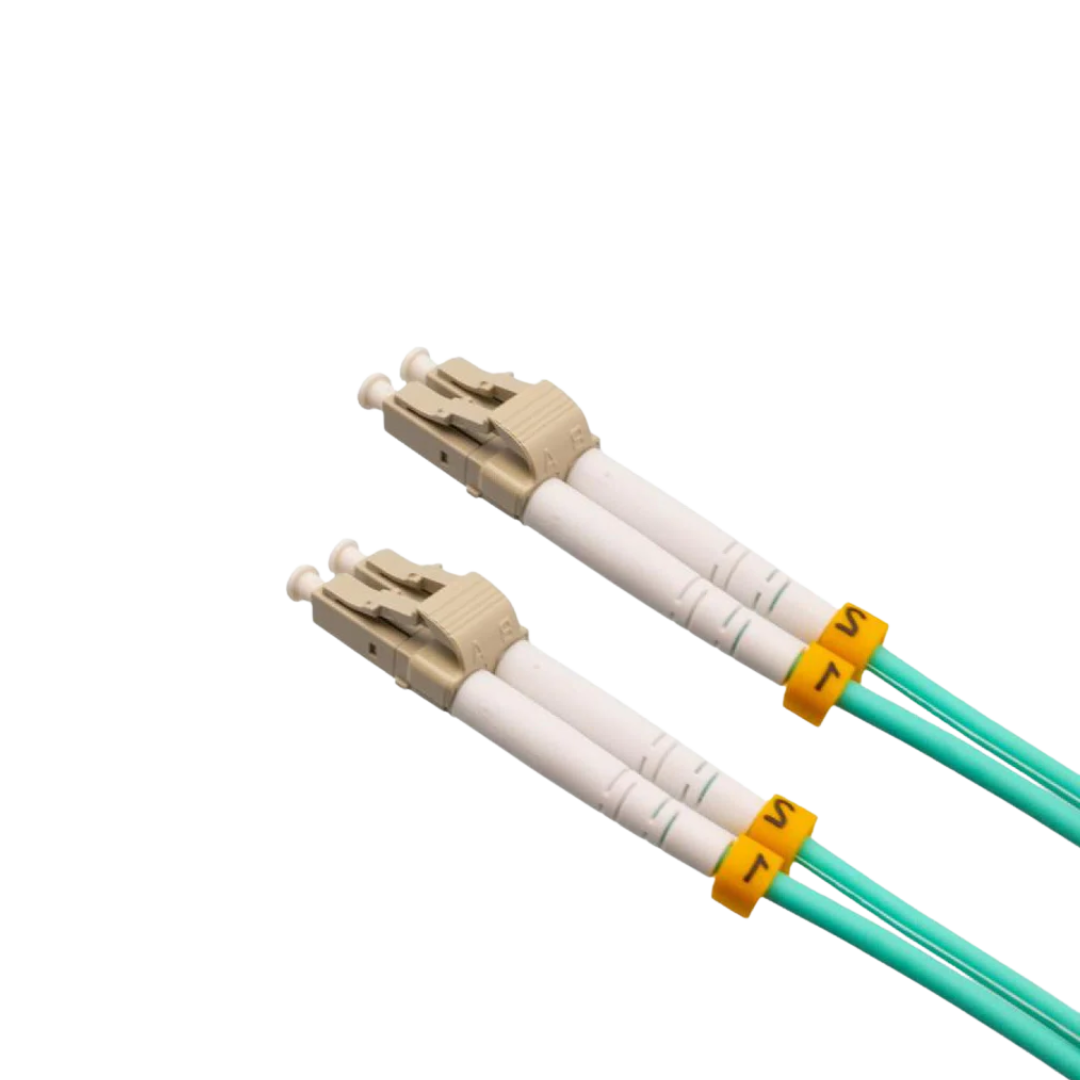

Fibre Optic Cable LC/UPC to LC/UPC Multimode Duplex OM3 0.50 to 20 m

TIENDACABLES TCOM00005

7,86 €

Length

0.50 m 1 m 2 m 3 m 5 m 7 m 10 m 20 m

Description

Multimode duplex OM3 fibre optic patch cord with LC/UPC connectors. LSZH jacket (low smoke and halogen free) with a 3 mm diameter and ceramic zirconia ferrule, suitable for indoor network installations and communications cabinets.

Key features

LC/UPC connectors, multimode duplex fibre
OM3 cable type, 50/125 µm core and cladding
Return loss > 20 dB and insertion loss < 0.20 dB
Ceramic (zirconia) ferrule rated for a minimum of 1000 insertion cycles
LSZH UL94 V0 jacket in aqua, 45 mm bend radius
Available in 0.50, 1, 2, 3, 5, 7, 10 and 20 m

Specifications

Connector A	LC/UPC
Connector B	LC/UPC
Fibre type	Multimode duplex
Cable type	OM3
Core/cladding	50/125 µm
Return loss	> 20 dB
Insertion loss	< 0.20 dB
Ferrule material	Ceramic (zirconia)
Ferrule diameter	2.5 mm
Insertion cycles	Minimum 1000
Outer diameter	3 mm
Jacket material	LSZH, UL94 V0
Colour	Aqua
Bend radius	45 mm
Operating temperature	-20 ºC to +70 ºC
Available lengths	0.50, 1, 2, 3, 5, 7, 10 and 20 m
