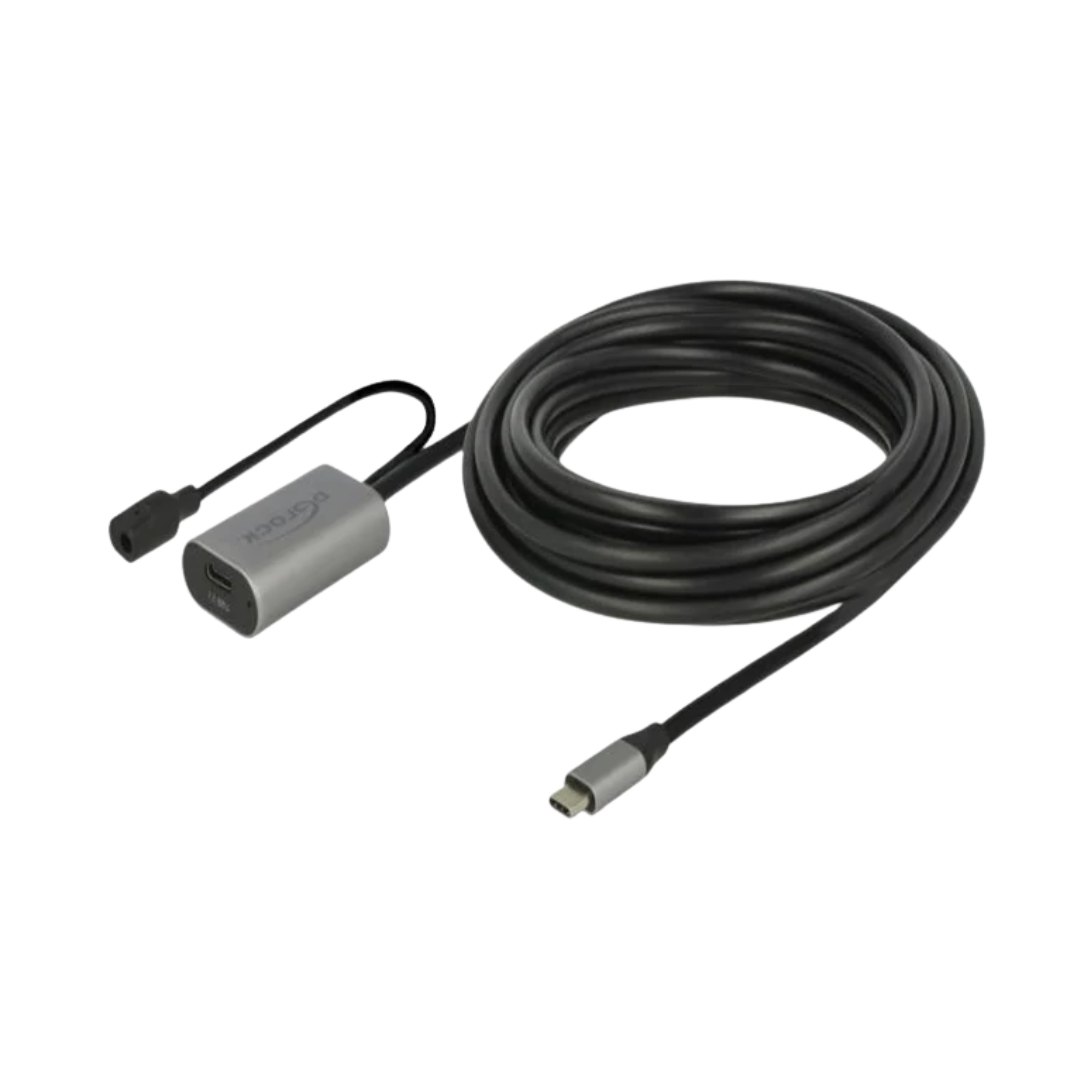

USB 3.1 Gen 1 Type-c Active Extension Cable 5m

This active USB cable by Delock can be used to extend a USB connection by 5 m. The cable has an additional DC power socket to which an optional power supply can be connected. This ensures optimal data transmission even when used with powerful devices such as a 2.5″ hard drive.

Technical specification

• Connectors:
  • 1 x SuperSpeed ​​USB (USB 3.1 Gen 1) USB Type-C™ male >
  • 1 x SuperSpeed ​​USB (USB 3.1 Gen 1) USB Type-C™ female
  • 1 x DC connector
• Chipset: Genesys GL3523
• DC connector for optional power supply
• Status LED
• Standard cable rating:
  • Data cable data line 28 AWG / power line 22 AWG
  • 24 AWG power cable
• Resistor: 5.1 kΩ
• Cable diameter:
  • data cable approx. 4.6 mm
  • power cable approx. 2.8 mm
• Data transfer rates up to SuperSpeed ​​USB 5 Gbps
• Color: black/gray
• Housing dimensions (LxWxH): approx. 45.0 x 28.6 x 14.1 mm
• Cable length without connectors: approx. 5 m

Power connector specification

• Input: 5V/2A
• Outer Earth, more interior
• Dimensions:
  • Inner: ø approx. 1.35 mm
  • Outside: ø approx. 3.5 mm
  • Length: approx. 9.65 mm

System Requirements

• Mac OS 10.13.6 or later
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with an available USB Type-C™ port

Package Contents

• USB 3.1 Gen 1 Extender

Package

• Retail Box
