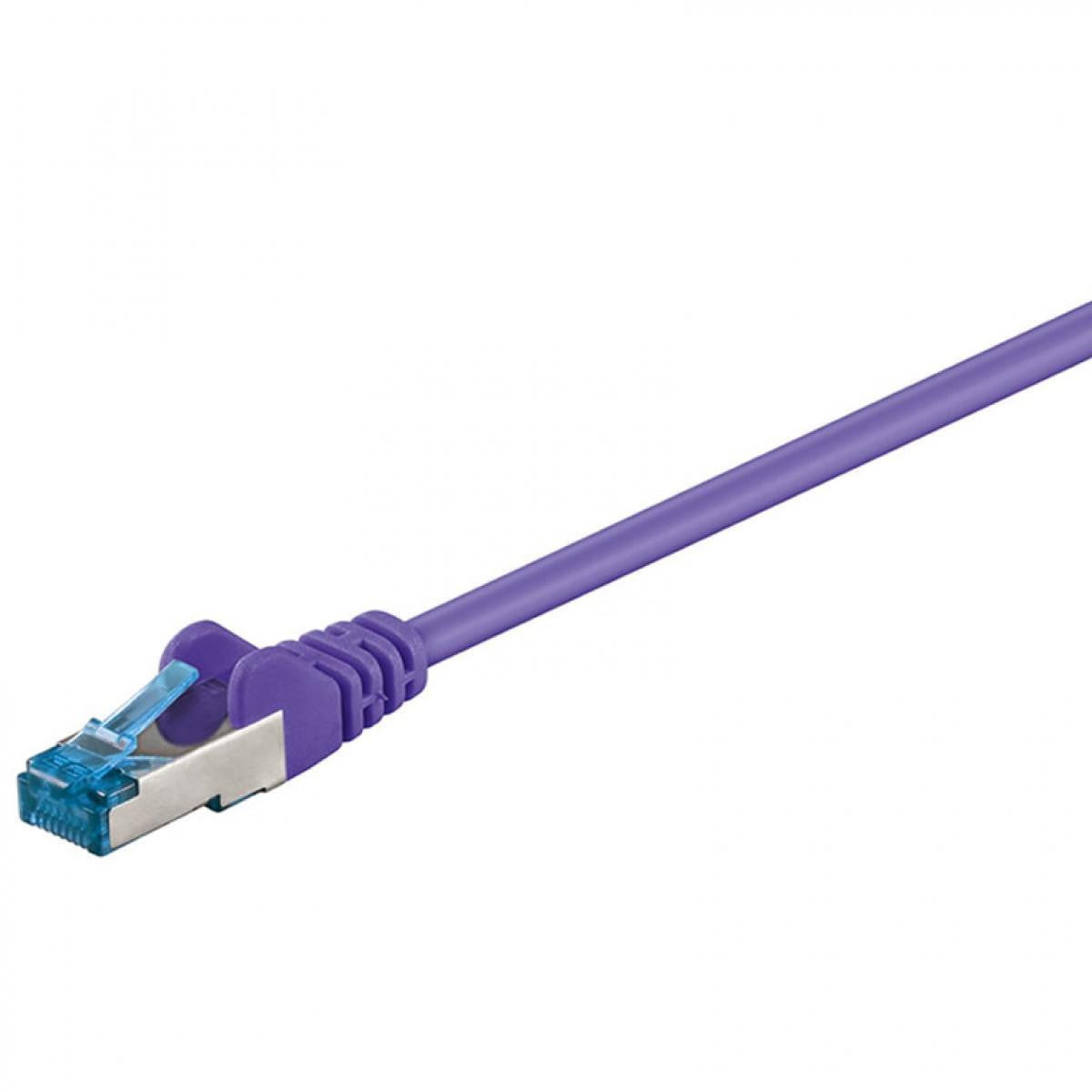

CAT 6A patch cable, S/FTP (PiMF) 2m

Characteristics:

• CAT 6A internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s
• The network cable is tested CAT 6A and is suitable for Power over Ethernet (PoE, PoE+).
• General S/FTP protection: aluminum foil screen for individual wire pairs (PiMF) and aluminum mesh screen for the cable cover.
• High-quality copper (CU) conductor and gold-plated contacts.
• Protection against creasing and a durable cover.
• The latch protection on the RJ45 sockets.

Technical specifications

• Connection 1: RJ45 male type (8P8C).
• Connection 2: RJ45 male type (8P8C).
• Connection, 3 µm gold-plated contact material.
• Pair sequence according to EIA/TIA 568B.
• Round CAT 6A cable.
• Maximum signal transmission. Broadband 500 MHz
• S/FTP armor class (PiMF).
• AWG 27/7 (stranded).
• Inner conductor material CU (copper).
• LSZH cable sheath material.
• Cable sheath diameter (approx.) 5.9mm.
• Cable length: 2 m
• Length indication on the connector
• Operating temperature from -20 ºC
• Operating temperature up to 65°C
• Violet color
