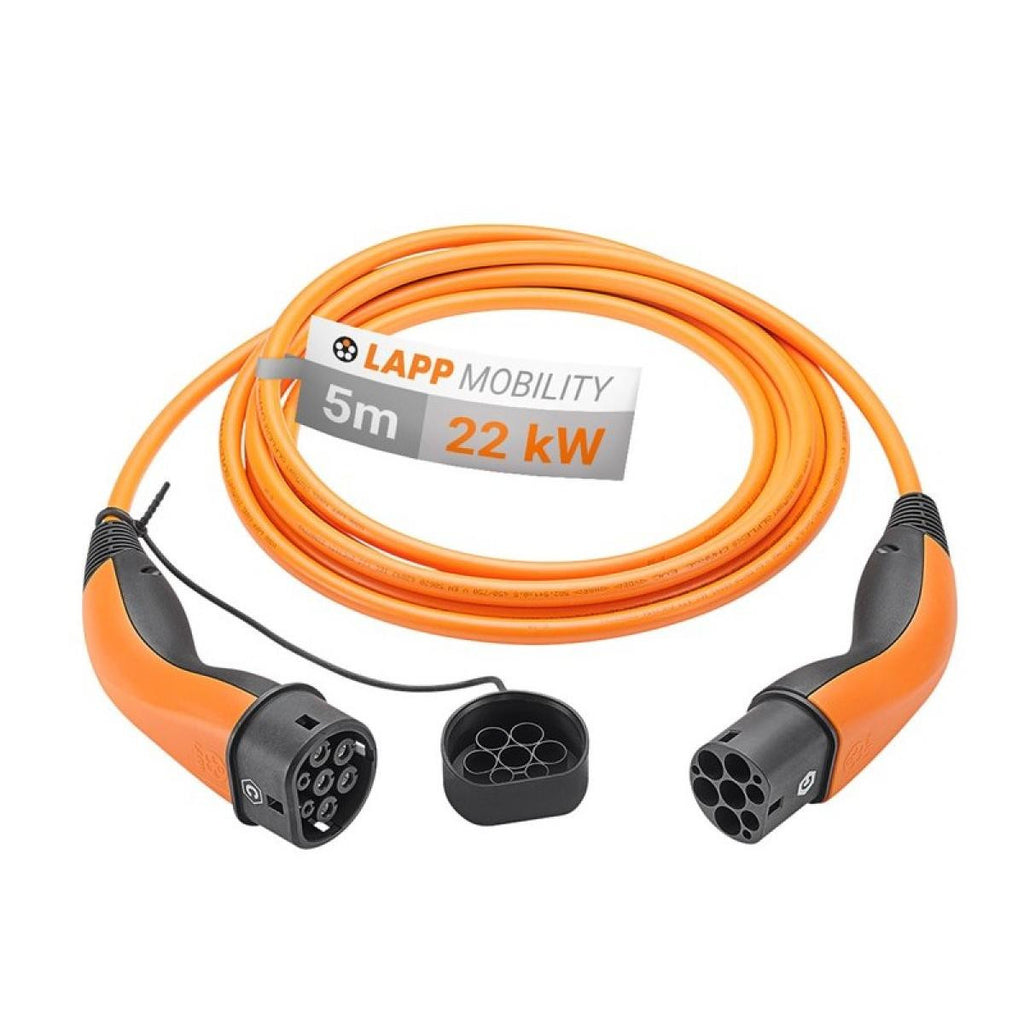

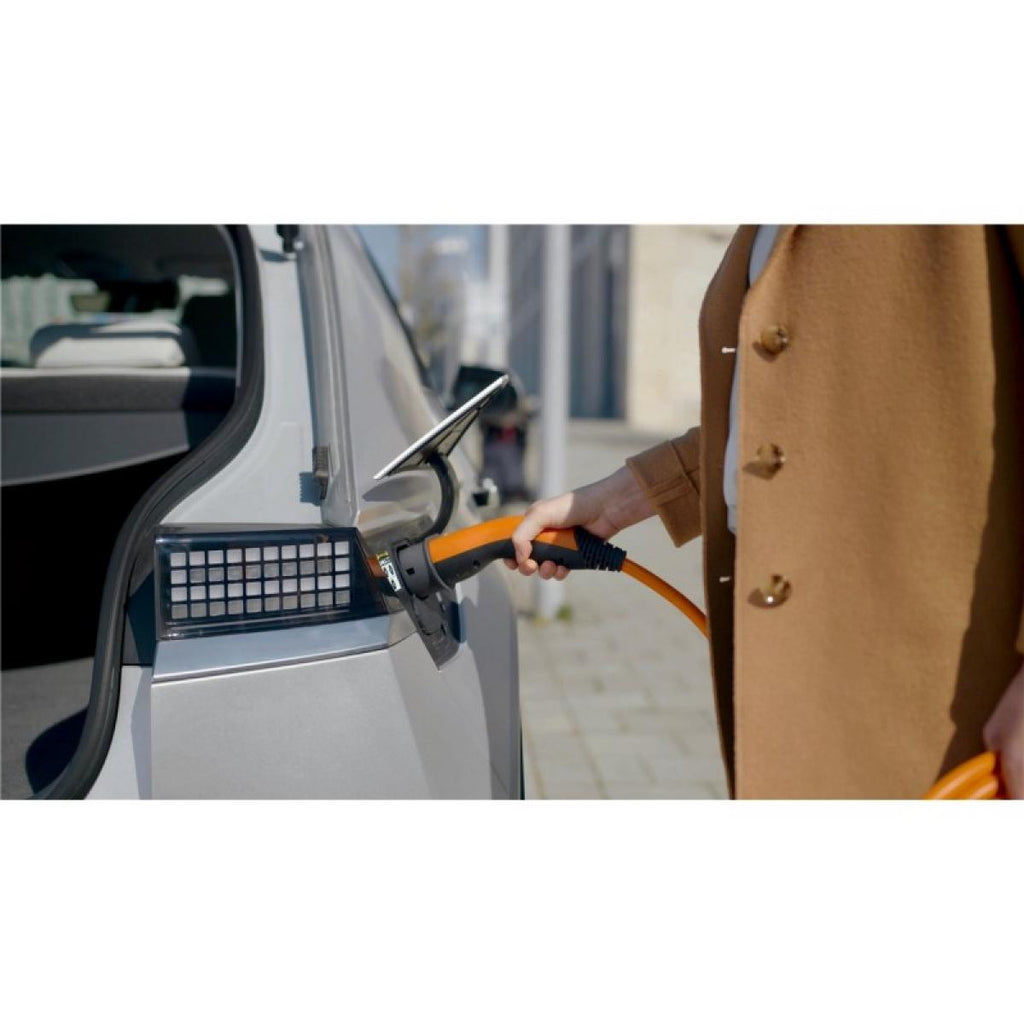

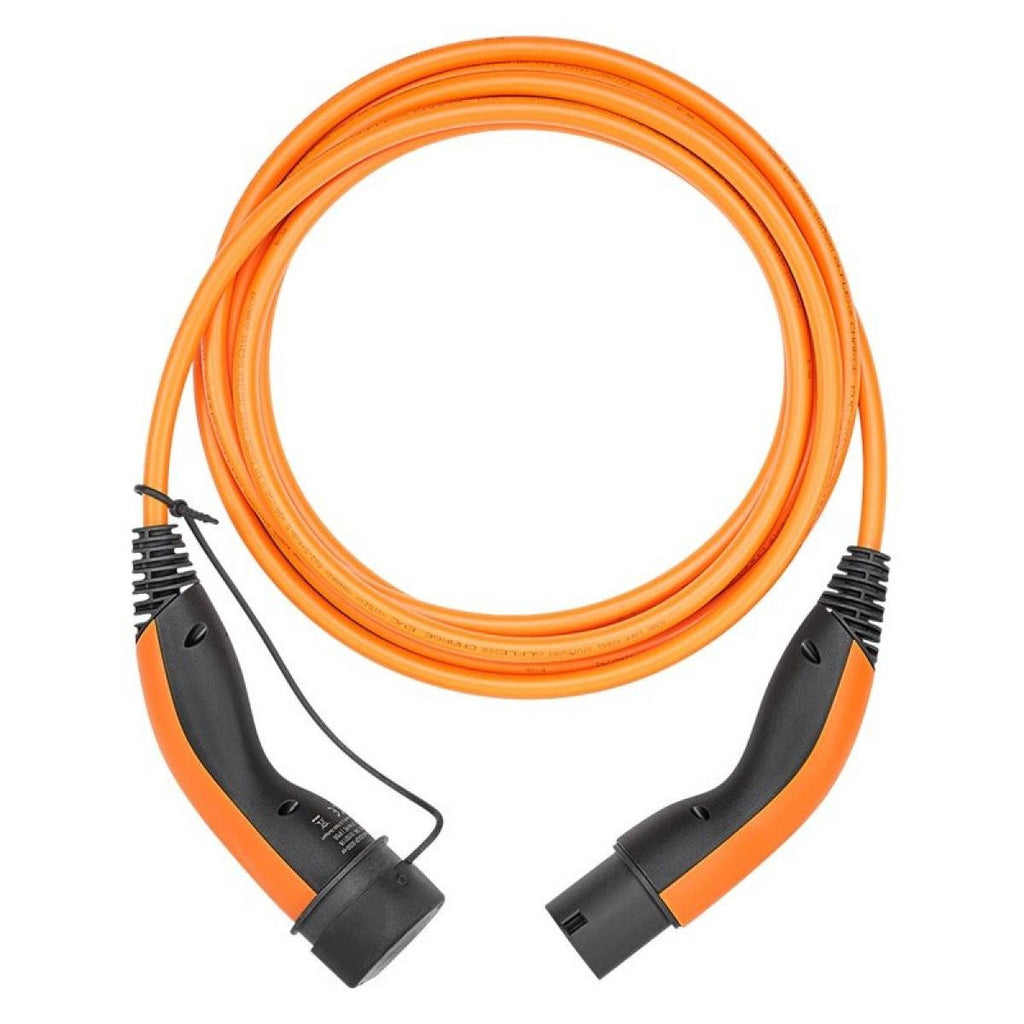

Connect your electric or plug-in hybrid car to a charging station, a public post or the wallbox at home. Just plug the coupler into the vehicle and the connector into the supply: the on-board electronics start and stop the charge on their own. Three-phase 32 A cable made by LAPP in Germany, rated to be driven over and sealed to IP55. Buy it today at TiendaCables!
Supported charging powers
- Three-phase: up to 22 kW, and 11 kW as well
- Single-phase: 7.4 kW and 3.7 kW
What it works with
- Vehicles: any battery electric vehicle (BEV) or plug-in hybrid (PHEV) with a Type 2 connection
- Charging points: European public stations, posts and wallboxes with a Type 2 socket
- Cars with CCS: compatible with the AC side of CCS (Combo 2) connections
Specifications

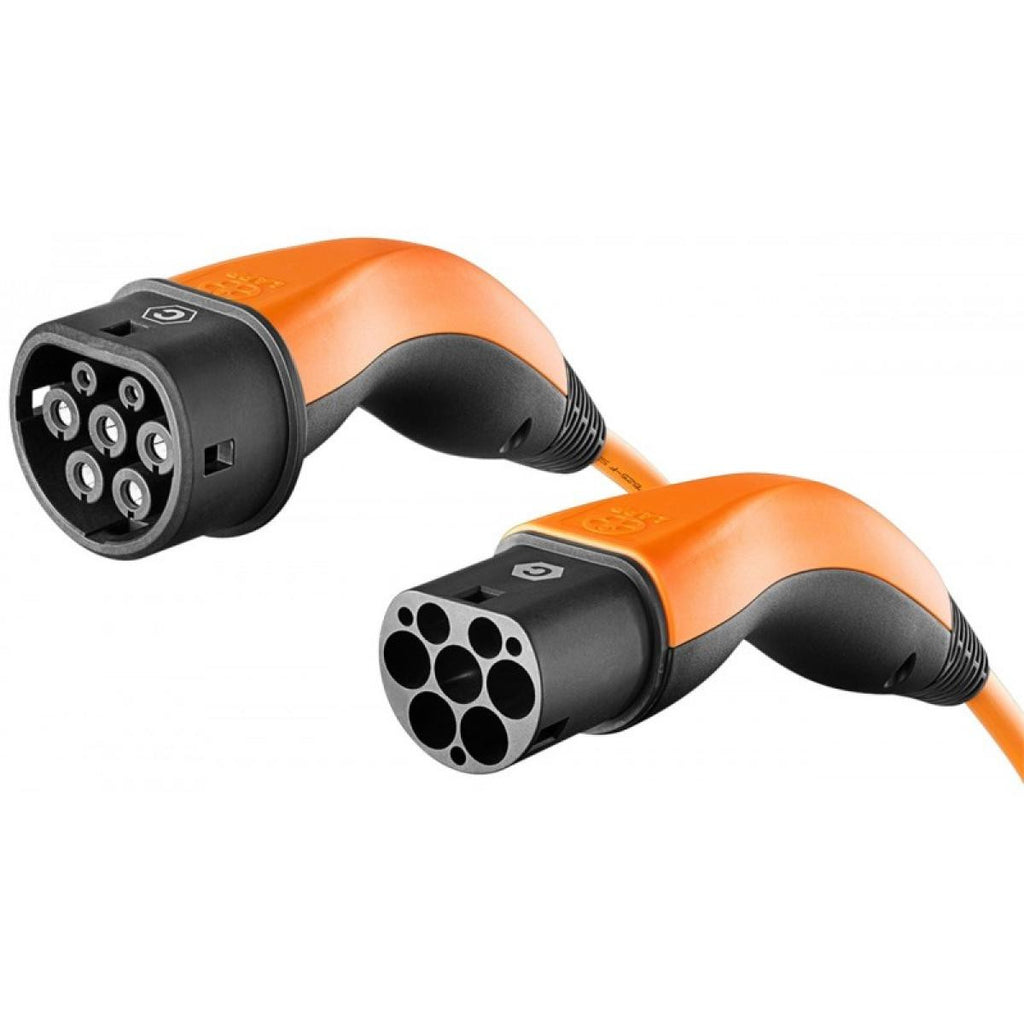

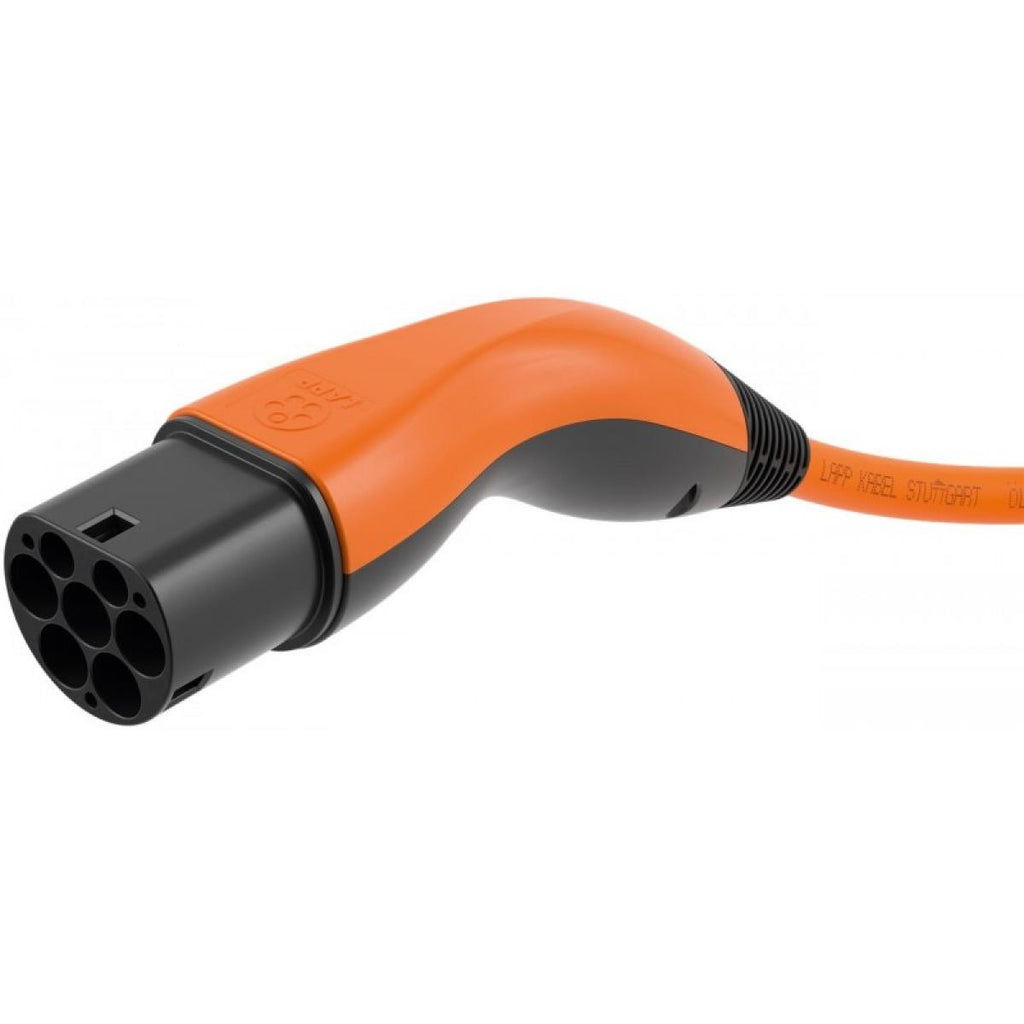

- Vehicle-side connection: Type 2 female coupler
- Charging-point connection: Type 2 male plug
- Charging mode: mode 3
- Maximum permissible current: 32 A
- Rated voltage: 440 V AC
- Number of phases: 3
- Maximum charging power: 22 kW
- Length: 5 m, straight cable
- Sheath: ÖLFLEX CHARGE, oil-resistant and longitudinally watertight
- Protection rating: IP55
- Operating temperature: -40 °C to 50 °C
- Contacts: silver-plated and corrosion-resistant
- Grip: solid rubber, ergonomic design
- Certification: VDE, with CE and WEEE marking
- Manual: available online in 21 languages, English included
- Colour: orange
- Manufacturer reference: LAPP 5555934027
