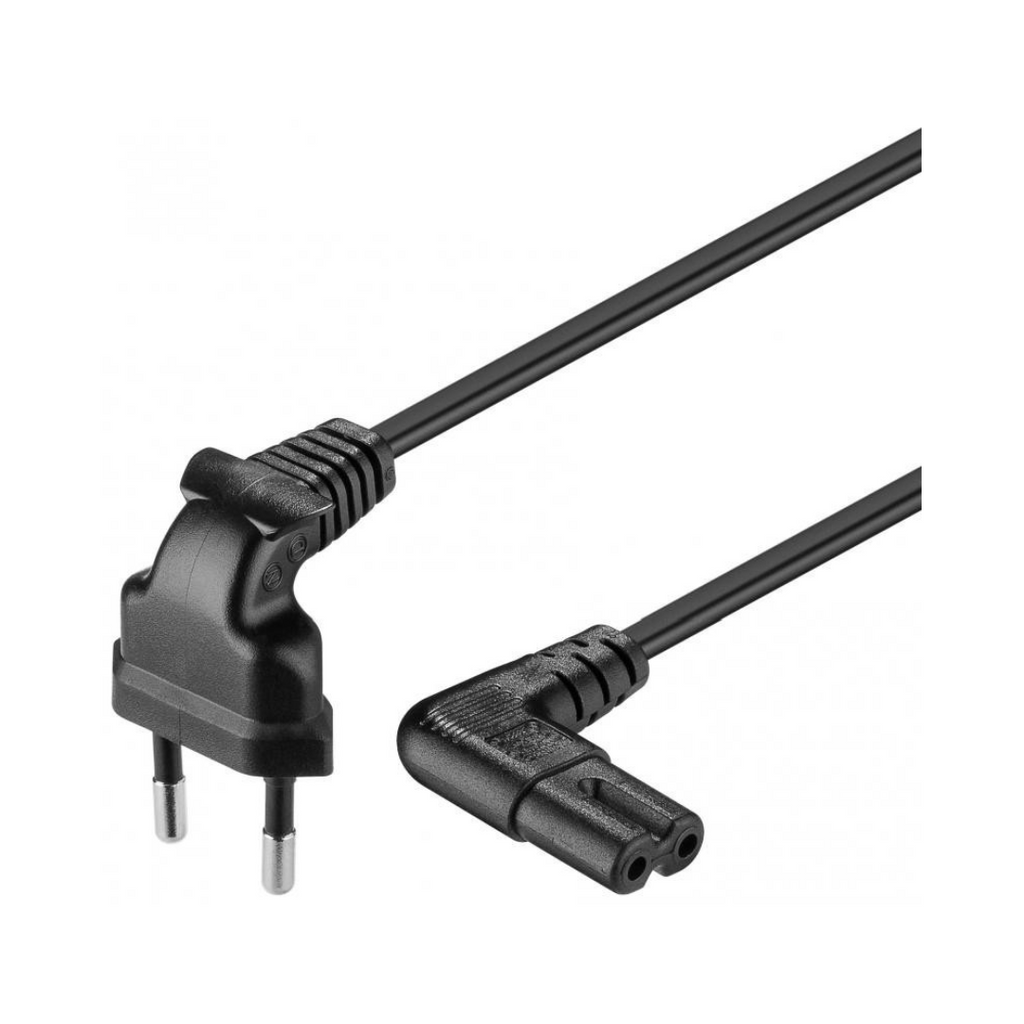

Euro male to IEC-320-C7 power cable, known as the “figure 8” connector, angled at both ends. It is commonly used on radios, recorders, battery chargers, power supplies, games consoles and double-insulated audiovisual equipment.
Key features
- Euro male connector at one end and IEC-320-C7 (“figure 8”) at the other.
- Both connectors angled, so the cable sits flush against the equipment and takes up less space.
- Flat cable with a 2 x 0.75 mm² copper conductor.
- Available in six lengths, from 0.70 to 5 m.
- For radios, recorders, chargers, power supplies, consoles and double-insulated AV equipment.
Specifications
| Connection A |
Euro male, angled |
| Connection B |
IEC-320-C7 (“figure 8”), angled |
| Cable design |
Flat |
| Conductor material |
Copper |
| Conductor cross-section |
2 x 0.75 mm² |
| Diameter |
3.5 x 5.6 mm |
| Outer material |
PVC |
| Available lengths |
0.70 m, 1 m, 1.50 m, 2 m, 3 m and 5 m |
| Colour |
Black |
