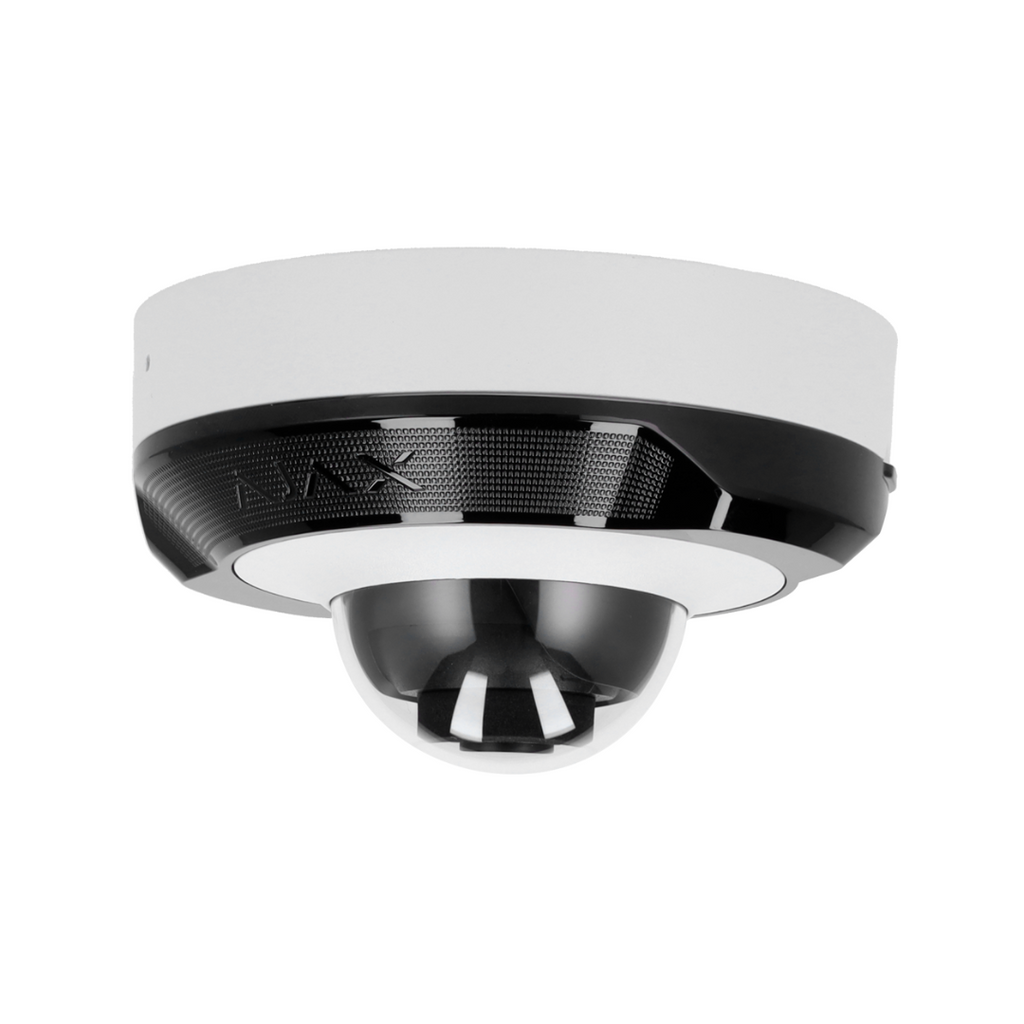

Discreet and vandal-resistant, the Ajax DomeCam Mini 5MP IP dome camera with a 4 mm lens is designed for tighter framing such as entrances, tills or corridors, with a 75–85° horizontal view.
It detects people, pets and vehicles with on-board AI, runs on PoE and integrates with the Ajax system for video alarm verification. Smart infrared up to 15 m for night-time.
Key features
- 5 MP resolution (2880 × 1620) with 120 dB True WDR
- 4 mm lens with 75–85° horizontal field of view
- Smart IR up to 15 m
- AI detection of people, pets and vehicles
- PoE (802.3af/at) or 12 V power
- microSD slot up to 256 GB and built-in microphone
- Encrypted JetSparrow protocol, mTLS and Secure Boot
- IP66 and IK08 housing for indoor and outdoor use
Specifications
| Brand | Ajax |
| Model | DomeCam Mini (5 Mp/4 mm), white |
| Image sensor | 1/2.7" 5 MP CMOS |
| Max. resolution | 5 MP (2880 × 1620) up to 25 fps |
| Lens | 4 mm fixed, f/1.6 |
| Field of view | H: 75–85°; V: 40–50°; D: 105–115° |
| IR range | Up to 15 m (smart IR) |
| Dynamic range | 120 dB (True WDR) |
| Compression | H.265 / H.264 |
| AI detection | People, pets and vehicles |
| Storage | microSD up to 256 GB (not included) |
| Audio | Built-in microphone (G.711, G.726, G.722) |
| Network | RJ-45 Ethernet 10/100 Mbps |
| ONVIF | Profiles G and S |
| Security | mTLS, Secure Boot, signed OTA updates |
| Power supply | PoE 802.3af/at (class 3) or 12 V⎓ 1 A |
| Operating temperature | −30 °C to +60 °C |
| Protection rating | IP66, IK08 |
| Dimensions | 113 × 60 mm |
| Weight | 360 g |
