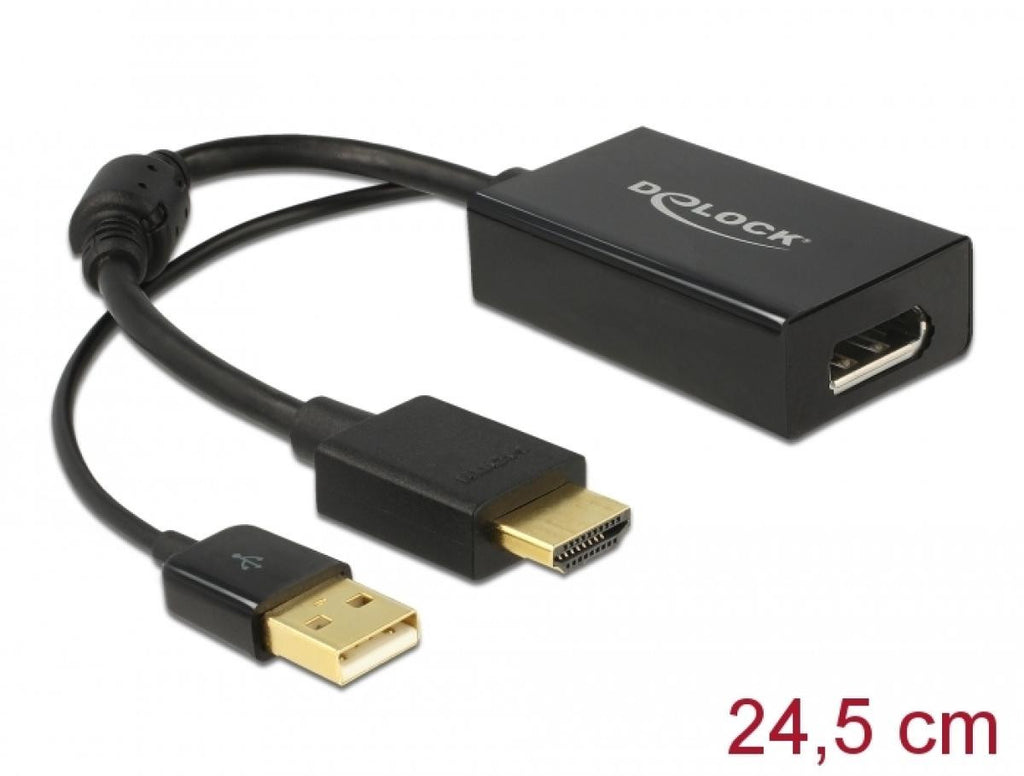

Active HDMI Male to DisplayPort 1.2 Female Adapter for Displayport Monitors

This Delock adapter allows you to connect a DisplayPort monitor to your system via a free HDMI interface. The adapter supports resolutions up to 4K Ultra HD at 30Hz and is backward compatible with Full HD 1080p.

Specification

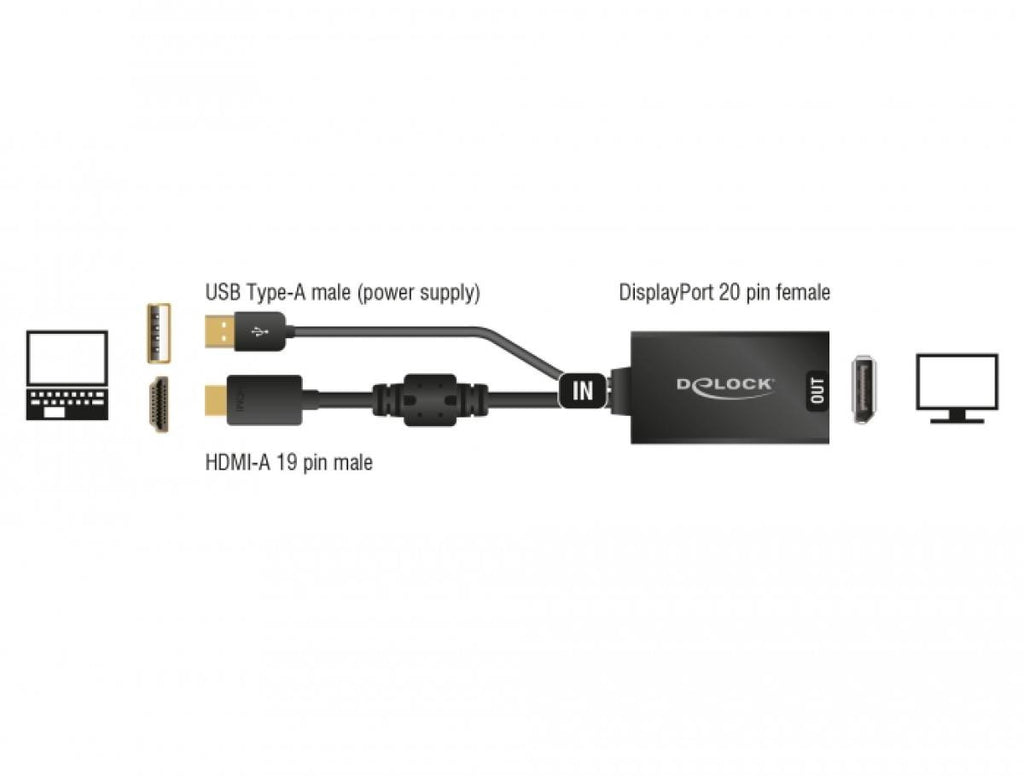

• Connectors:
• Entrance:
  • 1 x 19-pin HDMI-A male
  • 1 x USB Type A male (power supply)
• Exit:
  • 1 x 20-pin female DisplayPort
• Chipset: STDP2600
• DisplayPort 1.2 and High-Speed ​​HDMI Specification
• High-speed HDMI receiver - link speed up to 2.97 Gb/s per data pair
• Resolution up to 4Kx2K at 30 Hz; 1920 x 1080 at 120 Hz (depending on the system and
• the connected hardware)
• It supports 3D displays
• It supports 7.1 audio channels with a sampling rate of up to 192 kHz
• Supports HDCP 1.3
• Gold-plated connectors
• * Color depth:
  • RGB / YCC (4:4:4) - 16-bit color
  • YCC (4:2:2 / 4:2:0) - 16-bit color
• Energy consumption:
  • Operating power: approx. 500 mW
  • Standby: approx. 25 mW
• Color: black
• Cable length incl. connectors: approx. 24.5 cm
• Operating system independent, no driver installation required

System requirements

• A free HDMI-A female
• A free USB-A female
• Monitor with a free DisplayPort interface
• A DisplayPort cable

Package contents

• HDMI to DisplayPort Adapter
