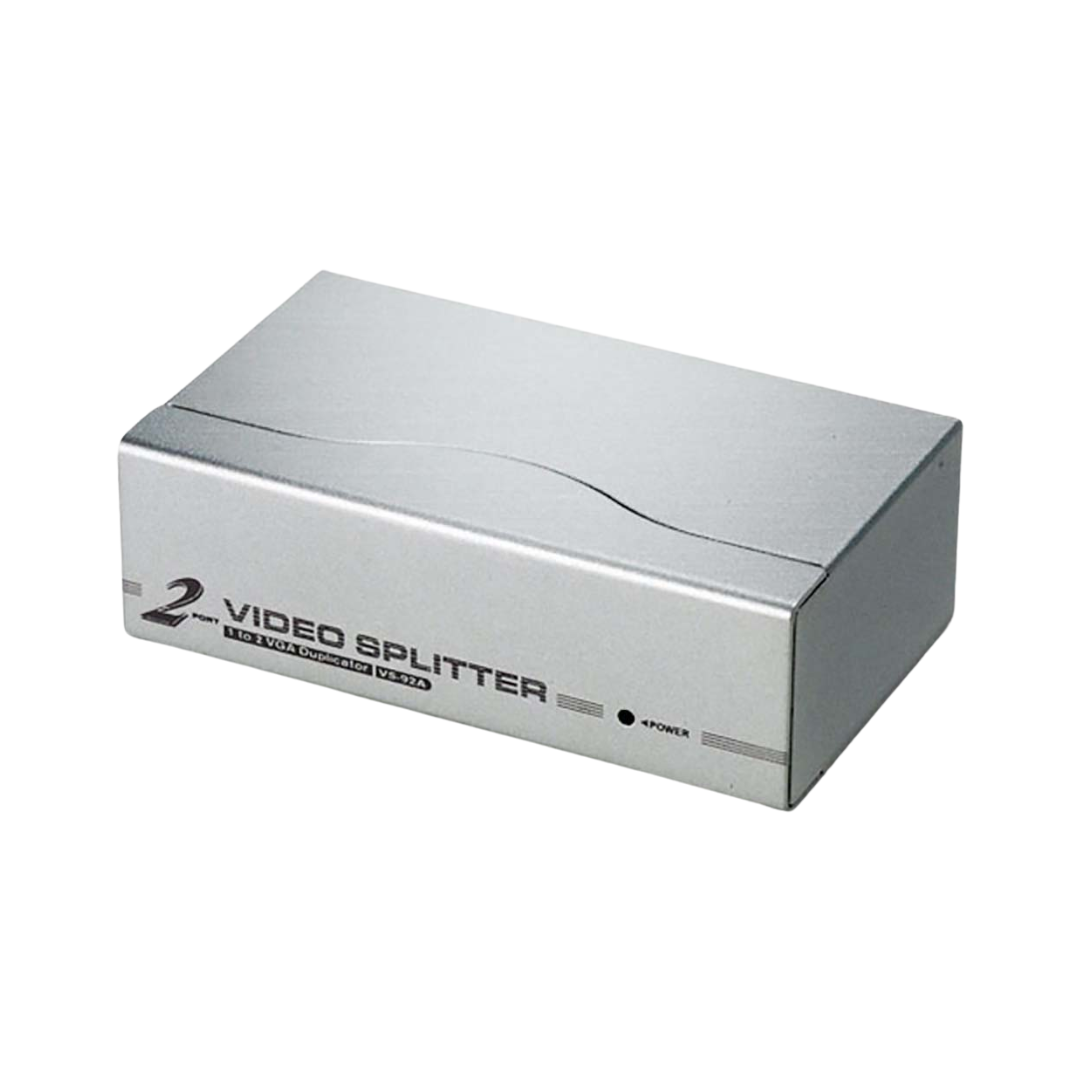

VGA splitter that shows one computer's picture on two monitors or projectors at once. It supports up to 1920 x 1440 at 60 Hz with 350 MHz of bandwidth and boosts the signal to reach up to 30 m per output.
It can be cascaded up to three levels to feed up to 8 displays. Metal housing, power adapter included.
Key features

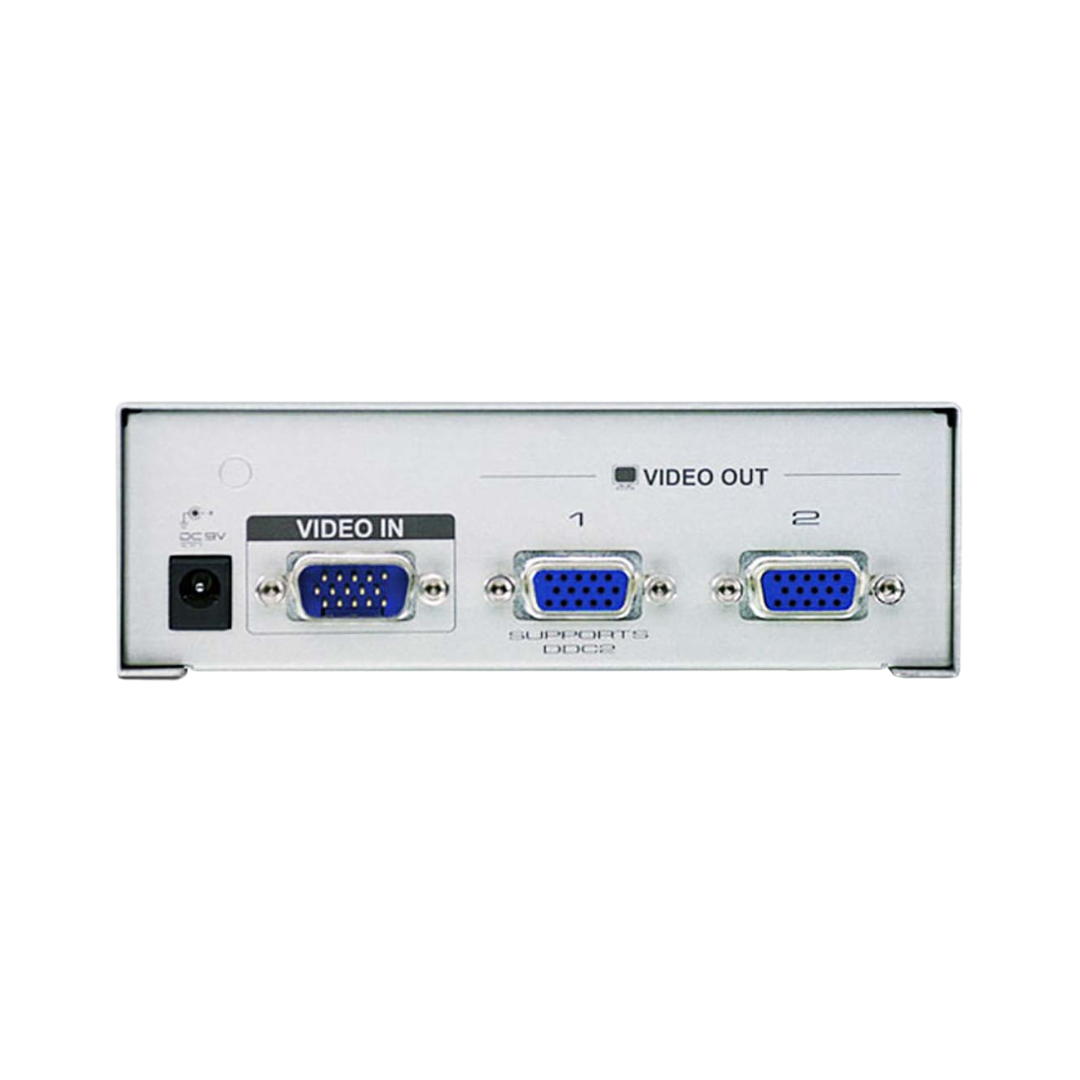

- 1 VGA input and 2 VGA outputs
- Up to 1920 x 1440 at 60 Hz
- 350 MHz bandwidth
- Up to 30 m per output
- Cascadable to 3 levels (up to 8 displays)
- Metal housing
Specifications
| Type |
1-to-2 VGA splitter |
| Input |
1 × male VGA (HDB-15) |
| Outputs |
2 × female VGA (HDB-15) |
| Maximum resolution |
1920 x 1440 at 60 Hz |
| Bandwidth |
350 MHz |
| Distance per output |
Up to 30 m |
| Input distance |
Up to 1.8 m |
| Cascade |
3 levels, up to 8 displays |
| Power |
9 V DC, adapter included |
| Power consumption |
1.15 W |
| Operating temperature |
0 to 50 °C |
| Housing |
Metal |
| Dimensions |
130 × 75.1 × 44 mm |
| Weight |
420 g |
| Brand |
ATEN |
| Model |
VS92A |
