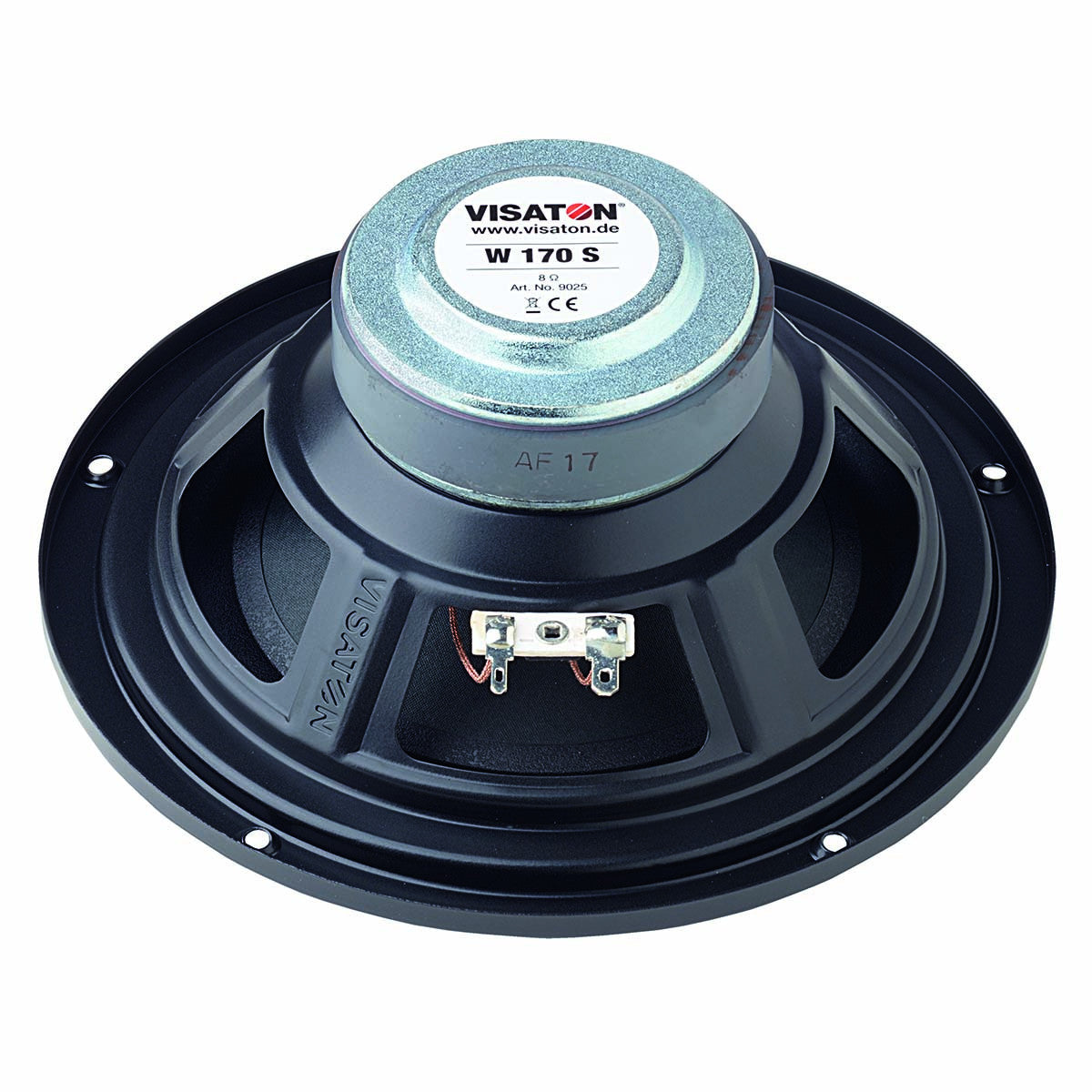

Woofer 8 Ohm 80 W

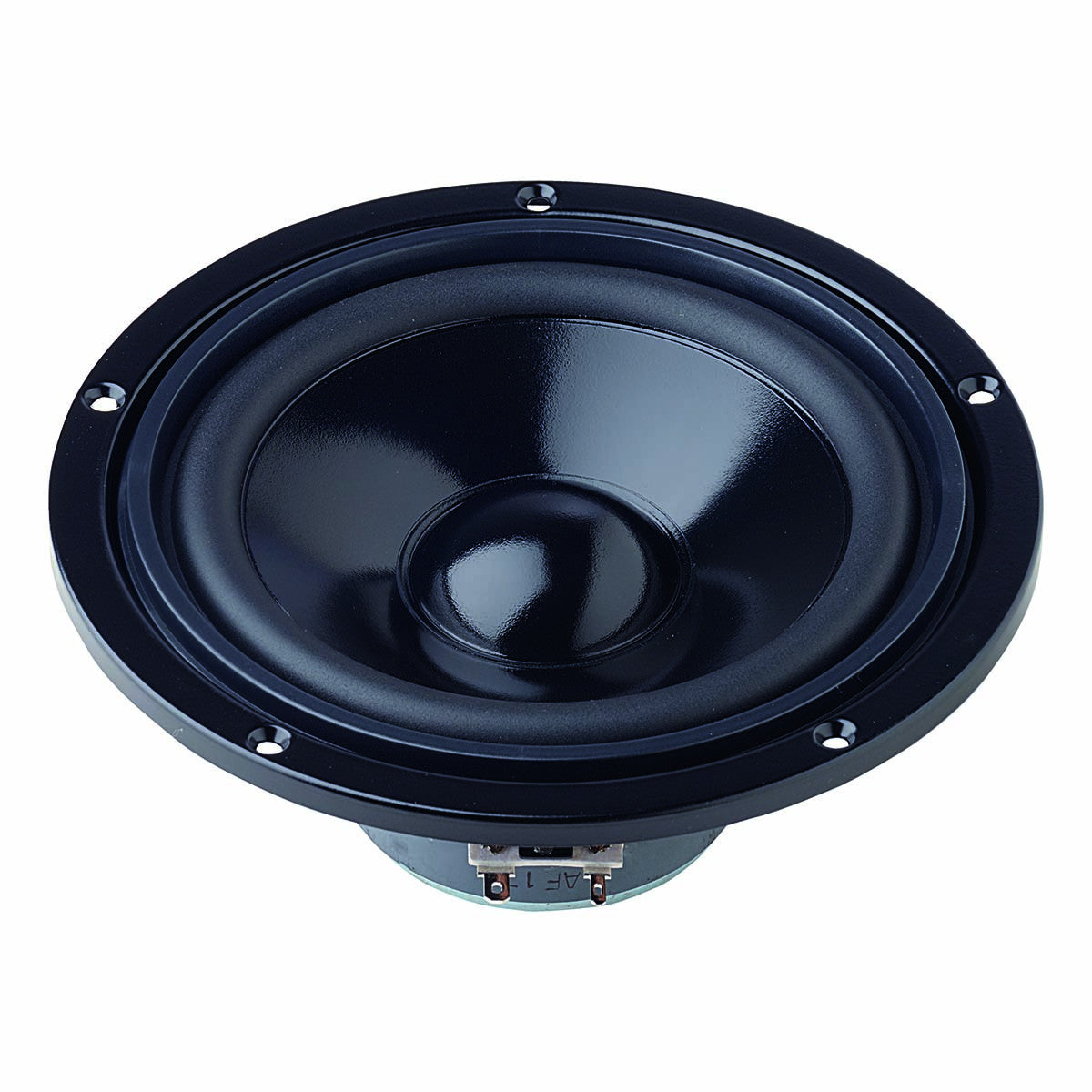

17cm woofer with coated cone and elastic rubber surround.
17cm woofer with coated cone and elastic rubber surround.
Technical Data:
Rated power: 50 W
Maximum power:80 W
Nominal impedance Z:8 Ohm
Frequency response: fu–8000 Hz
(fu: Lower cut-off frequency depending on cabinet) .
Mean sound pressure level:86 dB (1 W/1 m)
Maximum cone displacement:20 mm
Resonance frequency fs:36 Hz
Magnetic induction: 1.0 T
Magnetic flux:314 uWb
Height of front pole-plate:4 mm
Voice coil diameter: 25 mm
Winding height: 12.5 mm

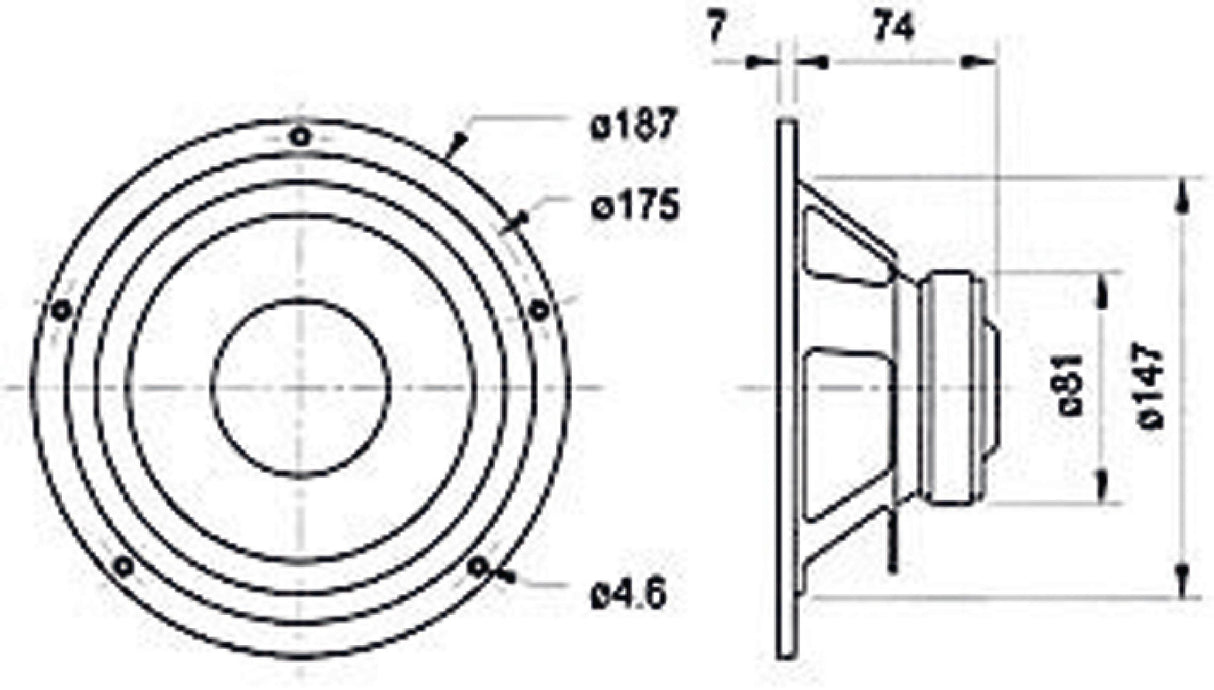

Cutout diameter:148 mm
Net weight: 1.1 kg
DC resistance Rdc:5.9 Ohm
Mechanical Q factor Qms:2.43
Electrical Q factor Qes:0.66
Total Q factor Qts:0.52
Equivalent volume of Vas:38 l
Effective piston area Sd:129 cm²
Dynamically moved mass Mms:13 g
Force factor Bxl:5.4 T m
Inductance of the voice coil L:1.2 mH
Recommended cabinets:
20 l (closed)
20 l 1x BR 15.34 (length 12 cm)
50 l 1x BR 15.34
Specs:

TO	15.2 mm
Length:	15.2 mm
Type of termination	Screw Connection

Specs:

Impedance	8 Ohm
Weight	1.1 kg

17cm woofer with coated cone and elastic rubber surround.
17cm woofer with coated cone and elastic rubber surround
