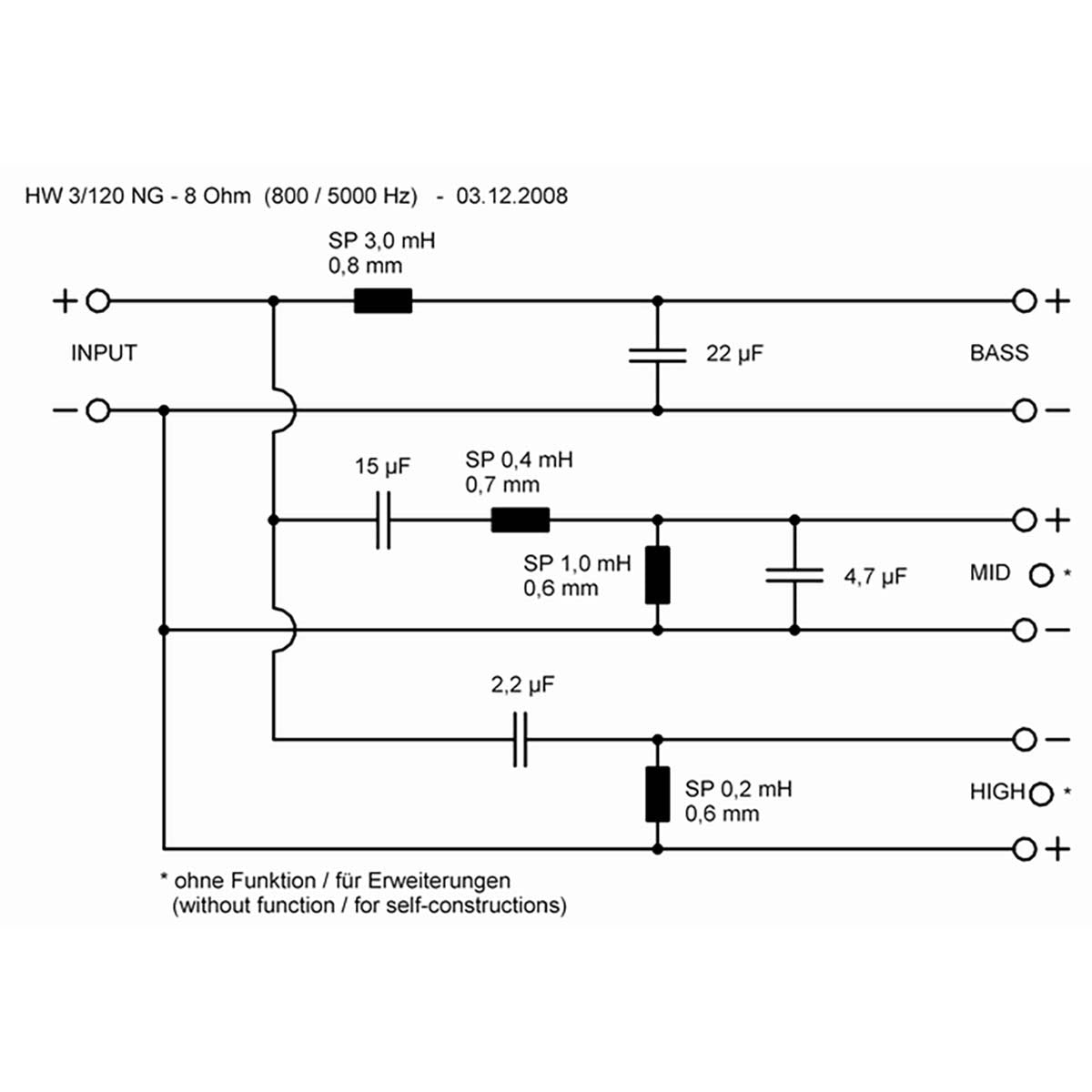

3 Way Filter 8 ohm

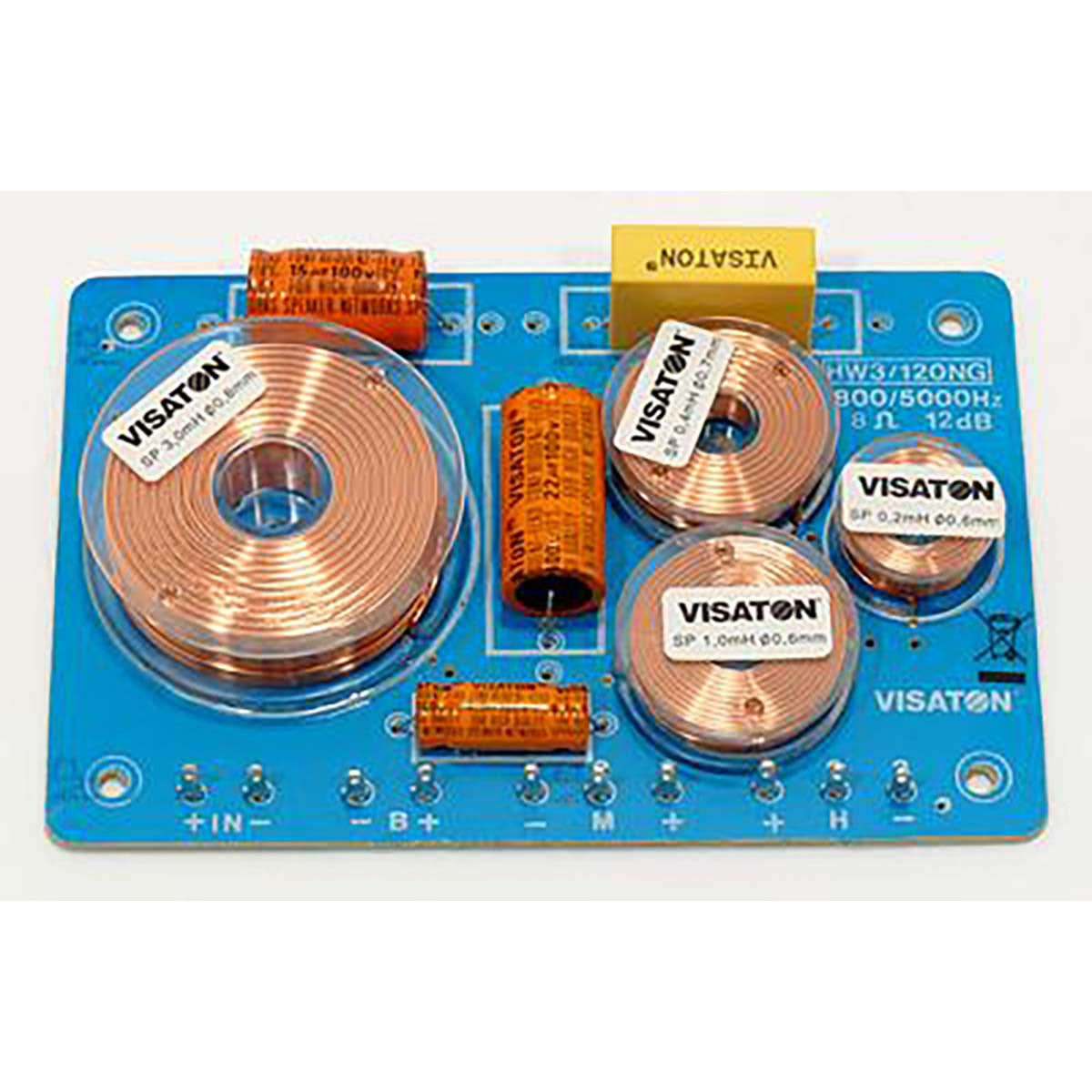

Filter made with high-grade copper coils and electrolytic capacitors with low acoustic frequency losses mounted on a polyepoxy printed circuit board. Operation, attenuation slope and crossover frequency tested.
Filter made with high-grade copper coils and electrolytic capacitors with low acoustic frequency losses mounted on a polyepoxy printed circuit board. Operation, attenuation slope and crossover frequency tested.
Impedance (Ohm)8
Nominal power (W)100
Maximum power (W)160
attenuation slope (dB/Okt.)12/12
Crossover frequency800/5000 Hz
Dimensions (mm)100x150
• Crossover made of high-grade copper coils and low-loss audio frequency electrolytic capacitors, mounted on epoxy PC boards. Checked with regard to functioning, slope steepness and cross-over frequency. Filter made with high-grade copper coils and low-loss audio frequency electrolytic capacitors mounted on a polyepoxy PC board. Operation, attenuation slope and crossover frequency checked.
Filter made with high-grade copper coils and electrolytic capacitors with low acoustic frequency losses mounted on a circuit board.
