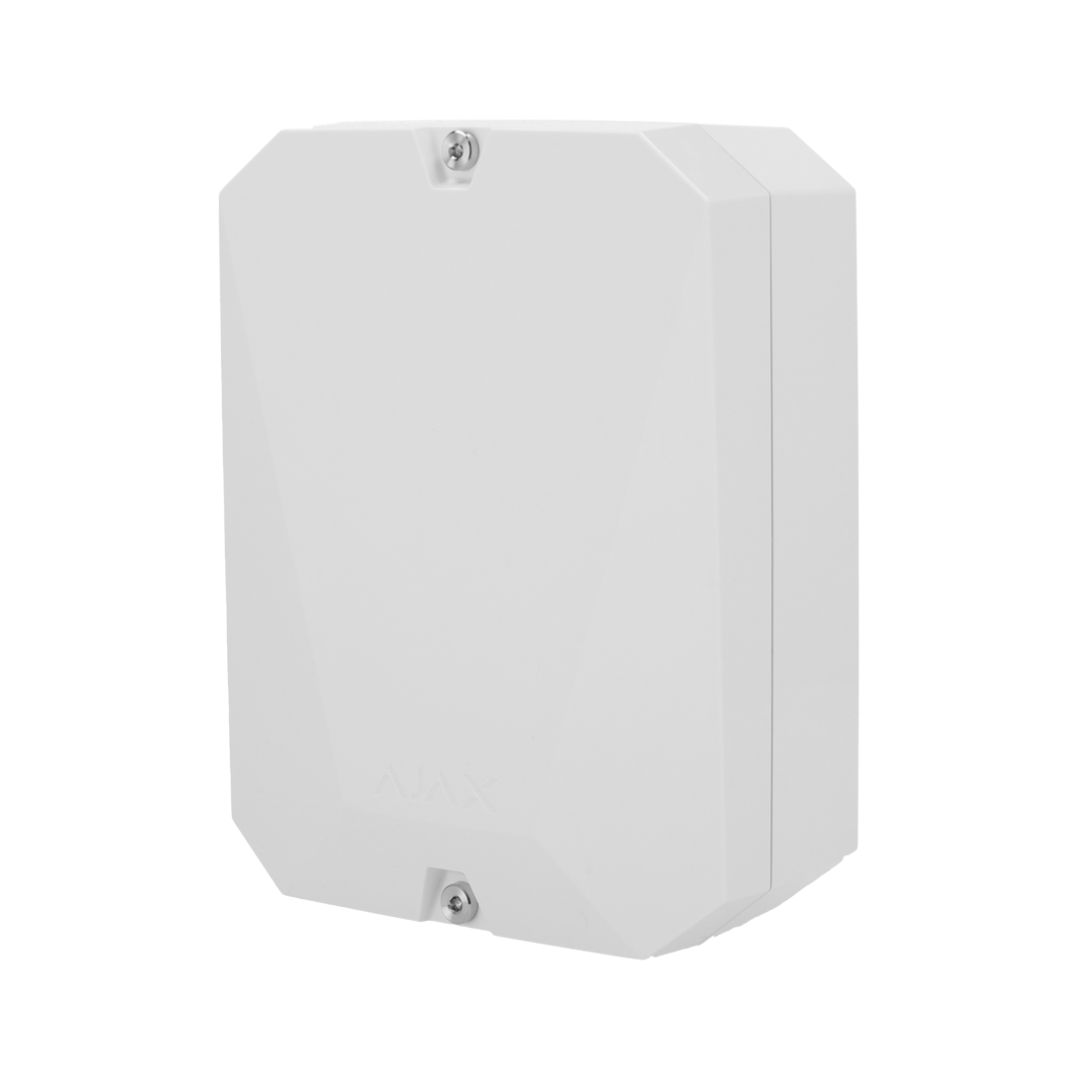

Jeweller Wireless 868 MHz Wired Zone Expander Up to 18 Wired Alarm and Tamper Inputs Alarm Configuration

162,80 €
AJAX  |  SKU: AJ-MULTITRANSMITTER-3EOL

Estimated delivery 1 to 5 business days after order

Description

Brand Ajax
Frequency 868 MHz Jeweller
Transmission distance ≤ 2000 m in open space
Anti-inhibition detection Available

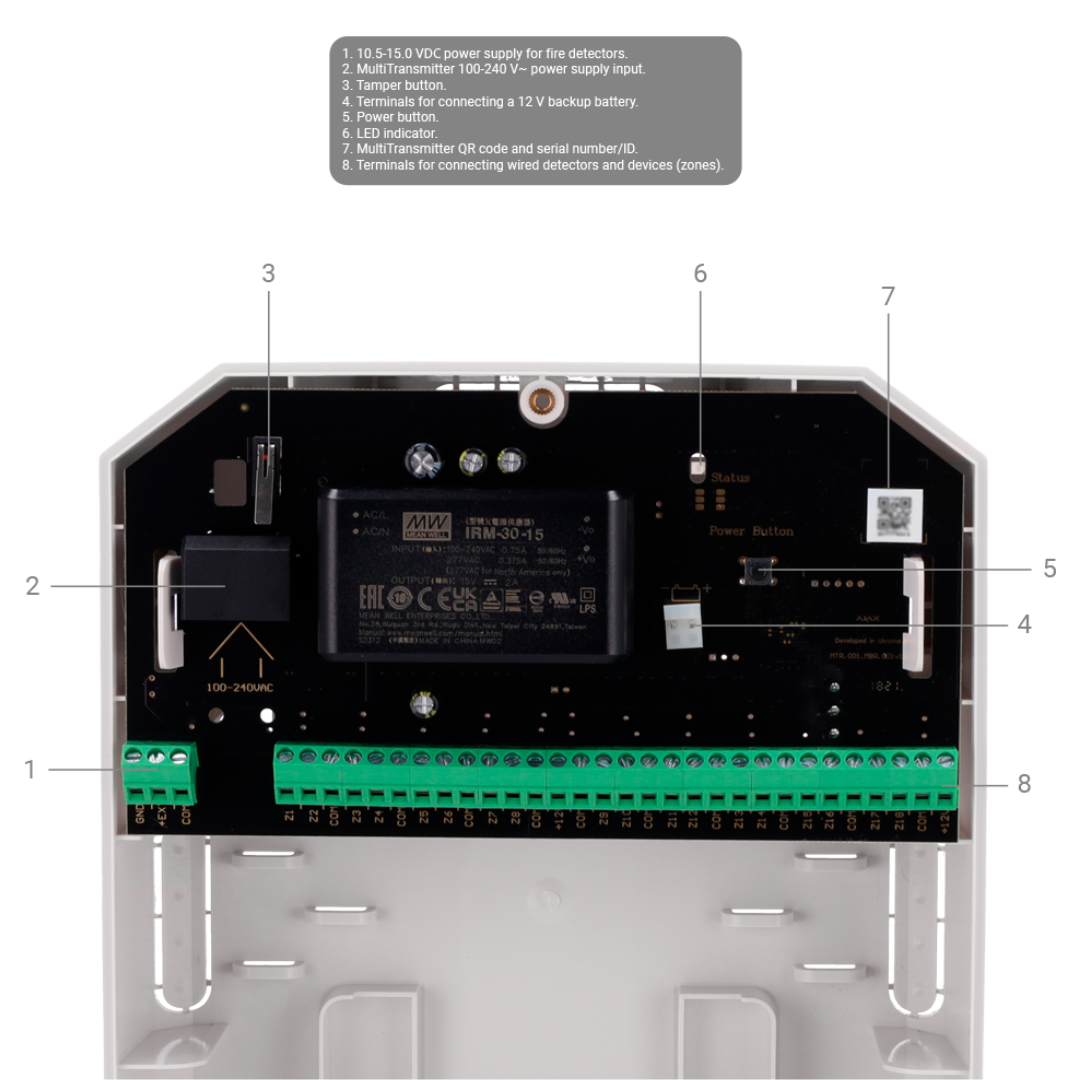

Wired inputs Up to 18 (Intrusion, Fire, Medical Assistance, Panic Button, Gas Alarm, Tamper Alarm, Malfunction, Flood, Custom)
Tamper inlet NC: Normally Closed
Alarm inputs NO, NC, EOL, 2EOL, 3EOL / Pulse or bistable
End-of-line (EOL) resistance From 1 kΩ to 15 kΩ in 100 Ω increments
Cable length Up to 400 meters
Tamper-proof Front and rear
Power output Two 12V/1A outputs (total) for wired detectors
Compatibility Compatible with Hub, Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2
3EOL function compatibility Compatible with Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid, ReX and ReX 2
Feeding AC 110~250 V, 50/60 Hz
Backup battery 12V / 4 or 7Ah battery (not included)
Advanced features KeyArm Zone
Operating temp. -10 ºC ~ 40 ºC
Backup battery dimensions 150 (H) x 64 (W) x 94 (D) mm
Dimensions 238 (H) x 192 (W) x 100 (D) mm
Color White
