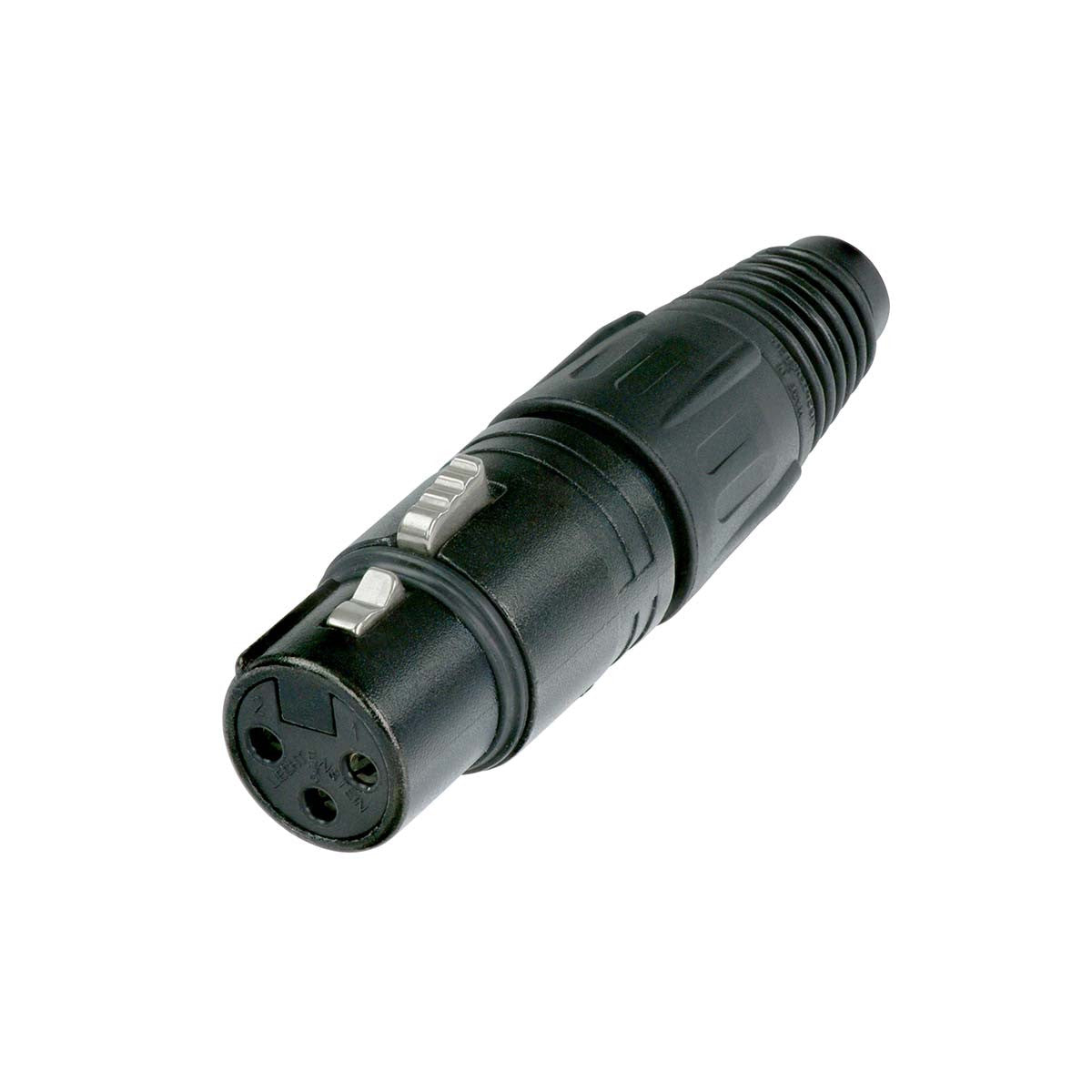

Black Metal Female XLR Connector Audio Connectors

NEUTRIK NC3FXB
3 pole cable connector, female. Black metal housing and gold contacts.
NEUTRIK NC3FXB
3 pole cable connector, female. Black metal housing and gold contacts.
TECHNICAL DATA
Electrical
Number of contacts: 3
Contact resistance: ≤ 4 pF
Mechanical
Lifetime: >1000 cycles
Insertion/withdrawal force: ≤ 20 N
Cable OD range: 3.5mm - 8.0mm
Materials
Shell: ZnAl4Cu1, black Cr over Cu plating
Insert: PA 6.6 30% GR (glass reinforced)
Contacts: CuSn8
Contact surface: gal 0.2 um Au hard alloy over 2 um Ni
Latch lock (female): St3K32
Strain relief clamp: POM
Antikink bushing: PUR
Environmental
Temperature range: -30° C to + 80° C
Flammability: UL 94HB
Solderability: complies with IEC 68-2-20
Compatibility / Remarks
Compatibility: IEC tentative standard & Switchcraft® QG & Cannon XLR
Disassembled version (3 pole only) in dispenser box of 100 pcs.: add suffix ´-D´
Connecteur pour cable 3 poles, female. Black metal log and gold contacts.
Specs:

Gender housing	Female
Plated	Nickel
Color	Black
Content	1 pc
Diameter	7.0 mm
Connector design - side A	Straight
Packaging and wrapping	Polypropylene bag
Materials	Metal
Connector type	XLR
