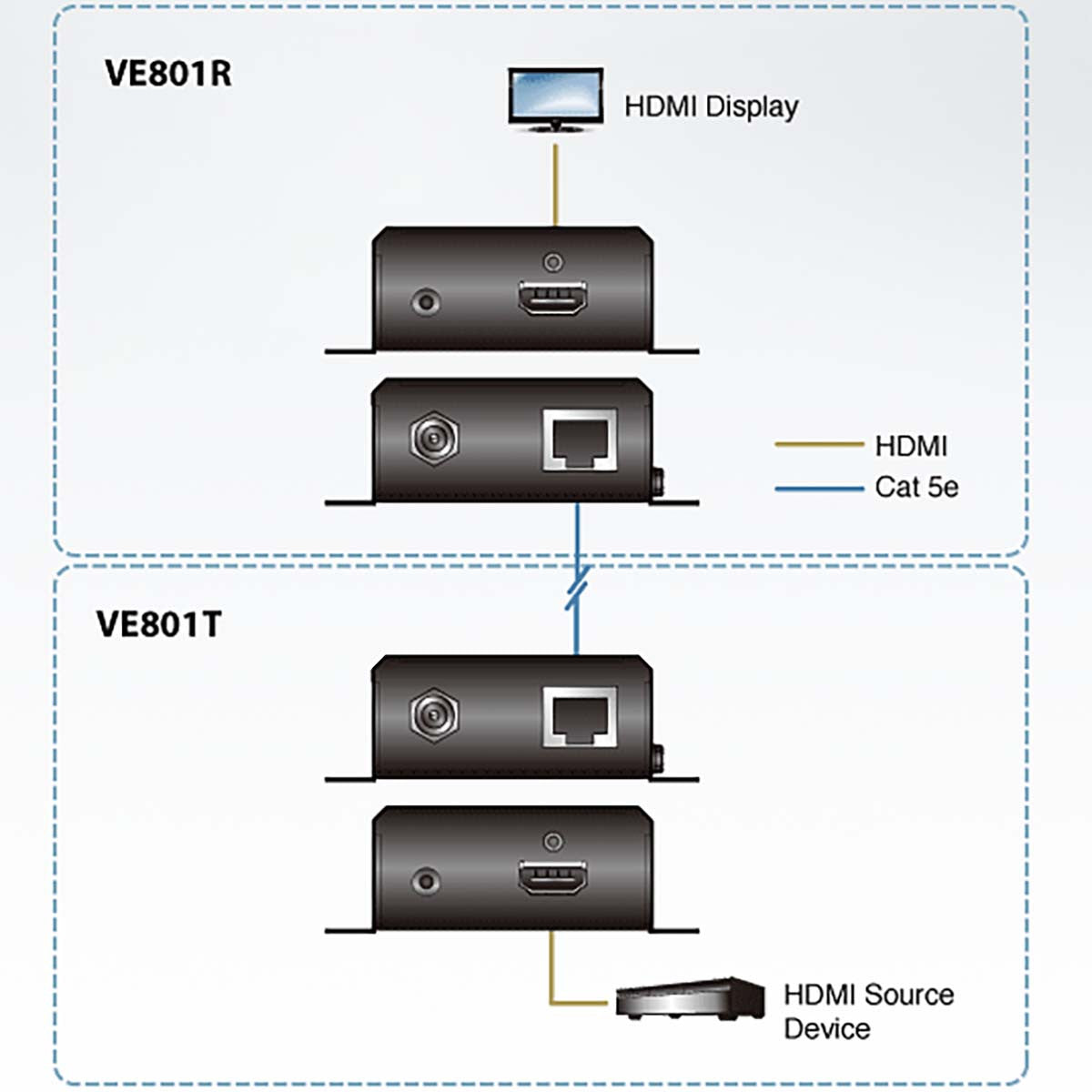

Connects a HDMI source with a HDMI display device using a cat. 5e/6/6a cable
HDMI (3D, deep colour, 4Kx2K, CEC) and HDCP-compatible
Manages thanks to HDBaseT-Lite (HDBaseT Class B) technology with just a cat. 5/6 cable to connect the transmitter and receiver unit
HDBaseT anti-jamming prevents signal interruptions when transferring high quality video
EDID Expert ensures optimum EDID settings for smooth switch on, high quality display and use of the optimum resolutions over multiple screens
Rack mounting possible
Connects a HDMI source with a HDMI display device using a cat. 5e/6/6a cable
HDMI (3D, deep colour, 4Kx2K, CEC) and HDCP-compatible
Manages thanks to HDBaseT-Lite (HDBaseT Class B) technology with just a cat. 5/6 cable to connect the transmitter and receiver unit
HDBaseT anti-jamming prevents signal interruptions when transferring high quality video
EDID Expert ensures optimum EDID settings for smooth switch on, high quality display and use of the optimum resolutions over multiple screens
Rack mounting possible

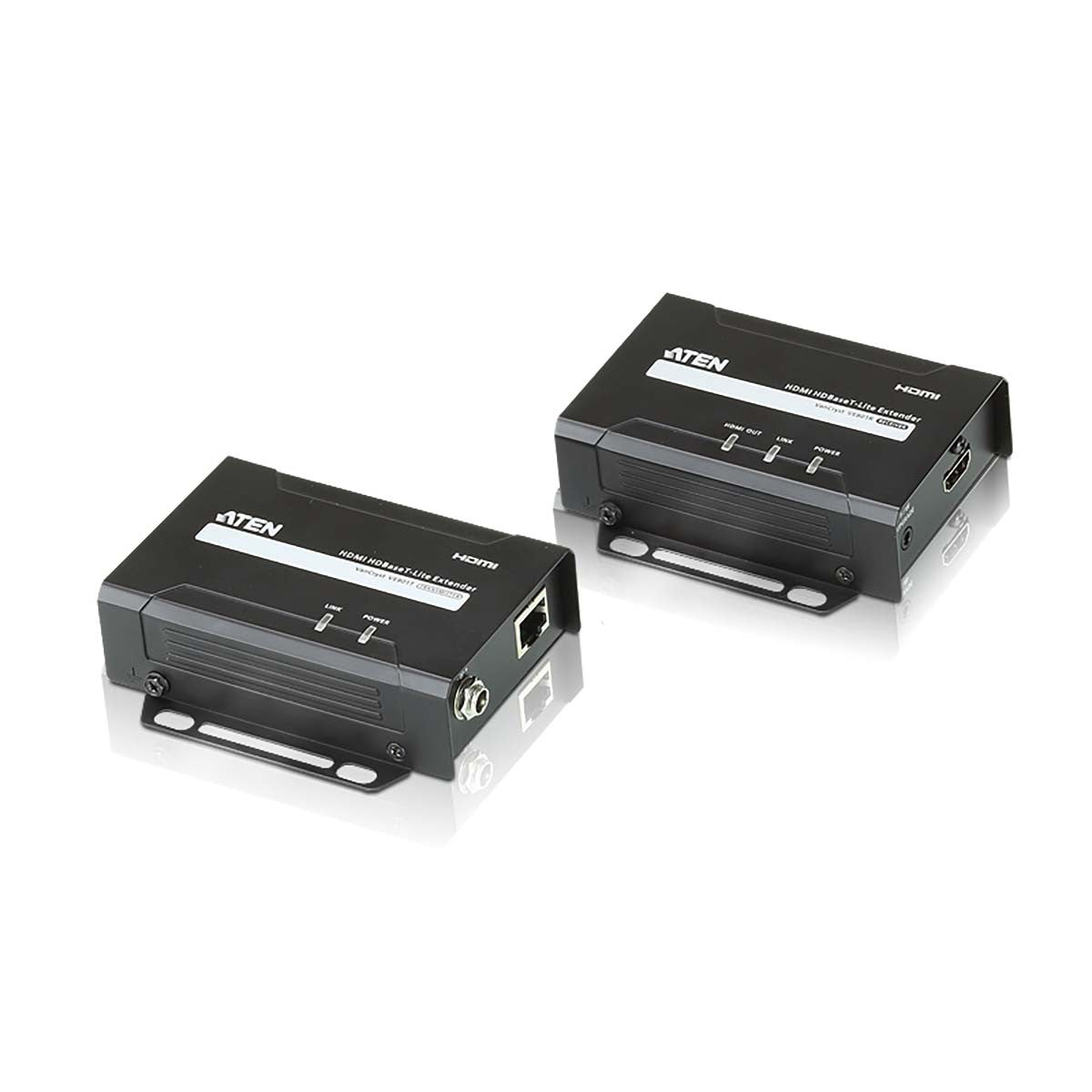

The VE801 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
Especificaciones:
| Ancho de banda |
340 MHz |
| Color |
Negro |
| Compatibilidad de audio |
Si |
| Compatible power supply |
0AD6-1F05-26EG |
| Conector de alimentación |
Euro / Type C (CEE 7/16) |
| Control de función |
Automático |
| Dimensiones |
124.7 x 87 x 30 mm |
| Distancia |
40 m |
| Embalaje y empaquetado |
Caja de regalo |
| Entrada de receptor |
1x RJ45 hembra |
| Entrada de transmisor |
1x Entrada HDMI |
| Material exterior |
Metal |
| Power consumption |
4.23 W |
| Resolución máxima |
4096x2160 |
| Salida de receptor |
1x Salida HDMI |
| Salida de transmisor |
1x RJ45 hembra |
| Tecnología compatible |
4K |
| Tecnología compatible |
Deep Color 30/36 bit |
| Tecnología compatible |
HDCP |
| Tipo de dispositivo |
Extensor |
| Tipo de dispositivo electrónico |
HDMI |
| Velocidad de datos |
10.2 Gbps |
| Versión |
HDBaseT Lite |
| Versión de HDCP |
Compatible con HDCP 1.4 |
